AGM Fuzion LRF TM35-384 THERMAL MONOCULAR

PART NO.: #3142451305FM31
product
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
€ 1,722.00 € 2,122.00
Add to cart
Package Includes
    Packing Box | USB Cable | User Manual | Lens Cloth | 2 18650 Rechargeable Batteries | EU Plug | Rubber eyepiece | Battery Charger | AGM Torch IR 850 or 940

Description and Features

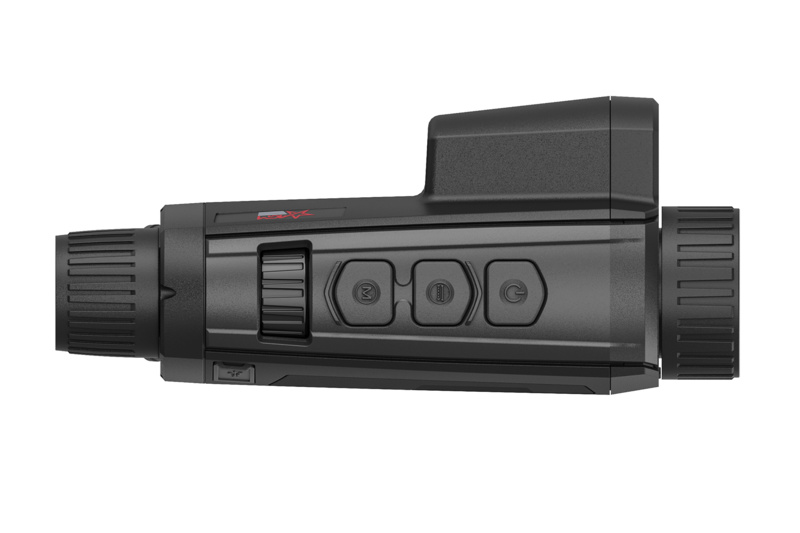

The AGM Fuzion LRF Handheld Thermal & Optical Bi-spectrum Monocular is equipped with 12μm high sensitivity thermal detector, ultra-low light optical detector, 1024×768 OLED display and eyepiece with a large field of view. The device can quickly detect hiding objects even under extreme environments such as smoke, fog, rain, snow, etc. It can be widely applied to scenarios including patrol, search and rescue, drug interdiction, and suspect apprehension. Due to its waterproof capability the device performs well even in severe weather conditions and challenging environments. The Fuzion LRF’s user-friendly interface, comfortable and ergonomic operating controls makes adoption and application incredibly simple. The monocular offers three different variants of image view: thermal, visible light, and fusion that can be easily adapted depending on different environmental conditions. This high-tech monocular is equipped with a laser rangefinder for measurement of target distance. The Fuzion LRF uses one 18650 rechargeable Lithium battery for up to 5-hours of operating time. In addition, an external power supply can be used to provide an increase in operating time.



  • Bi-spectrum image fusion and object highlight
  • Detail enhancement and target recognition
  • Selection of thermal view channel, visible light channel, or both them combined
  • 12 μm, 35 mK NETD high sensitivity thermal detector
  • Fast 50Hz imaging
  • 1x, 2x, 4x, 8x digital zoom
  • Digital image processing technology
  • Ultra-low illumination optical channel
  • 1920×1080 Optical resolution
  • Eye-safe laser rangefinder
  • 1024×768 resolution, 0.39-inch OLED display
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Wi-Fi hotspot
  • Standby mode
  • Up to 5 hours continuous running
  • Waterproof
  • 3-Year Warranty

SPECIFICATIONS

Detector Type 12 μm VOx Uncooled Focal Plane Arrays
Resolution 384 × 288
Refresh Rate 50 Hz
Response Waveband 8 μm to 14 μm
Thermal Lens Focal Length 35 mm
Aperture F1.0
Field of View (HxV) 7.5° × 5.7°
Diopter Adjustement -5 to +3 dpt
Magnification 3.5x – 28x
Digital Zoom 1x, 2x, 4x, 8x
Observation Distance 1,653 m
Monitor 1024x768, 0.39 inch, OLED, 50Hz
FFC (Flat Field Correction) Auto, Manual, External Correction
Palettes Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion
Highest Temperature Spot Tracking Yes
Scene Mode Jungle, Recognition
Optical Image Sensor 1/2” Progressive Scan CMOS, 1960×1200@25fps
Optical Sensor Wavelength 400-1000 nm
Optical Module Lens Focal Length 22 mm
Distance Measurement Yes (Laser Rangefinder: up to 600 m, ±1 m accuracy)
Laser Wavelength 905 nm
Laser Safety Class Class 1
Hotspot Yes
Sleep Mode Yes
Built-in Storage 16 GB EMMC
Record Video On-board video recording
Capture Snapshot Yes
CVBS Output Yes (via USB)
Battery Type One 18650 rechargeable battery (removable)
Battery Operating Time Up to 5 hours continuous running (@25°C, WiFi and CVBS off) Up to 3 hours continuous running (@25°C, WiFi and CVBS on)
Battery Capacity Display Yes
Power 5 VDC/2 A, USB Type-C interface Supports external power supply
Working Temperature -20°C to 55°C (-4°F to 131°F)
Protection Level IP67 (Waterproof)
Dimension 158 × 61 × 57 mm (3.2 × 2.4 × 2.2 in)
Weight (w/o batteries) 510 g (1.12 Ib)
