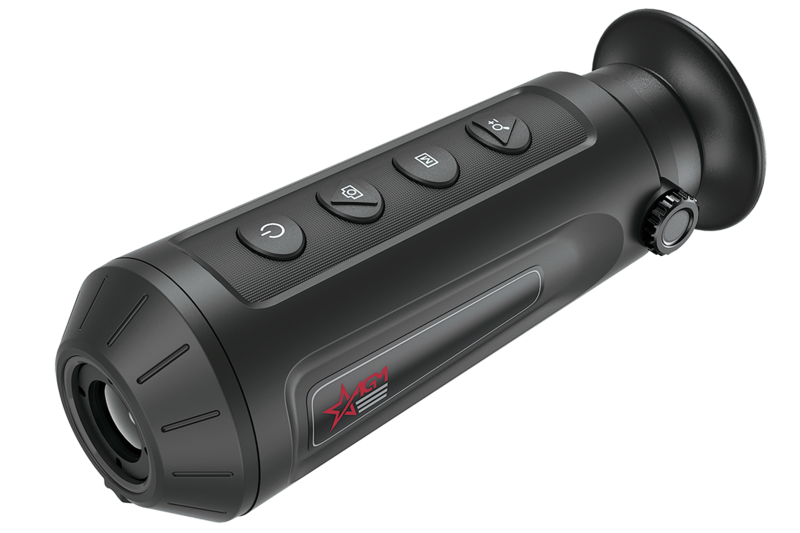

AGM Taipan TM15-256 THERMAL IMAGING MONOCULAR

PART NO.: 3092851012TA51
product
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
€ 839.00
Add to cart
Package Includes
    Monocular | USB Cable | Lanyard | AC Power Adapter/Charger | LensCloth | Operation Manual | EU Plug

Description and Features

The AGM Taipan thermal monoculars have become synonymous with two words: Reliability and Simplicity. The Taipan TM10-256 and Taipan TM15-256 are the great mid-level thermal monoculars for anyone wanting to experience the capabilities of thermal imaging. Equipped with a highly advanced 12 micron 256x192 resolution thermal sensor and a 720x540 LCOS display, it’s a great tool for hunters, campers and general outdoors enthusiasts who want or need to detect the presence of other animals or people in complete darkness. The range of uses include blood-tracking for hunters which aids in game retrieval, enhancing safety and awareness for hikers and camp sites and general nighttime curiosity. The Taipan still comes equipped with many of the most popular software features that experienced thermal users have come desire: up to 8 hours of battery life from an internal rechargeable battery, Wi-Fi hotspot, AGM Connect app compatibility for exporting and sharing images and videos, 8X digital zoom, and 8GB of internal storage with no need for a memory card.


  • 256×192 resolution, 12μm high-sensitivity detector
  • Adaptive AGC, DDE, 3D DNR
  • 720 × 540 LCOS display
  • Built-in rechargeable Lithium battery
  • Up to 8 hours continuous running (with Wi-Fi hotspot function off)
  • “Auto Power Off” and “Sleep” modes
  • Wi-Fi hotspot
  • Type-C interface
  • 3-year warranty

SPECIFICATIONS

Detector Type 12μm Vanadium Oxide Uncooled Focal Plane Array
Resolution 256×192
Refresh Rate 25 Hz
Response Waveband 8μm to 14μm
NETD Less than 35 mk (@25°C), F#=1.0
Detection Range (6’ object) 710 m/yd
Lens System 15 mm; F1.0
Field of View 11.69° × 8.78° (H × V)
Magnification 1.5× - 12×
Digital Zoom 1×, 2×, 4×, 8×
Monitor 720×540, 0.2 inch, LCOS
FFC (Flat Field Correction) Auto, Manual, External Correction
Palettes Black Hot, White Hot, Red Hot, Fusion
Highest Temperature Spot Tracking Yes
Wi-Fi Hotspot Yes
Standby Mode Yes
Storage Built-in memory module (8 GB)
Video Recording On-board video recording
Image Capture Yes
CVBS Output Yes (via USB)
Multi Language menu Yes
Battery Type Built-in rechargeable Lithium battery
Battery Operating Time Up to 8 hours continuous running (with Wi-Fi hotspot function off)
Battery Capacity Display Yes
Power 5 VDC/2 A, 1.5 W
Interface USB Type-C
Working Temperature -20°C to 55°C (-4°F to 131°F)
Protection Level IP67
Drop Test Height 1.5 m (4.9 feet)
Dimensions 158 × 61 × 57 mm (6.23 × 2.4 × 2.2 in)
Weight 0.28 kg (0.62 lb)
