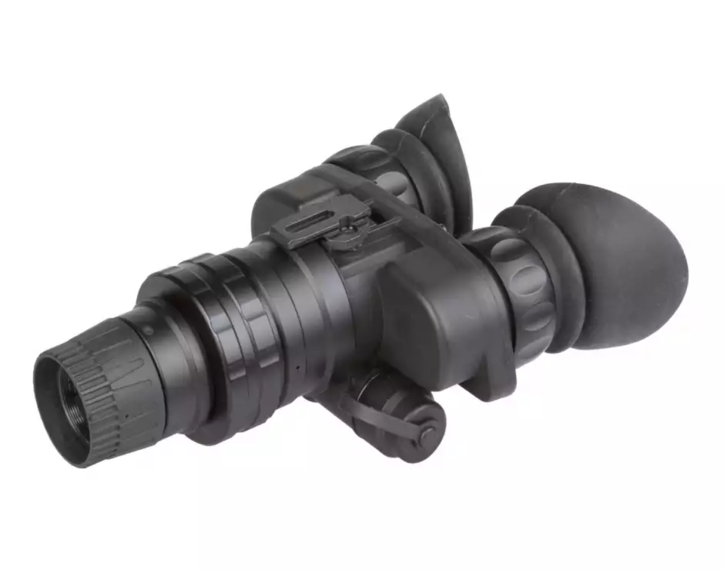

AGM Wolf-7 SKD Kit is a set of parts required to assemble Wolf7 night vision goggles. The kit does not include Image Intensifier Tube. It is not a functioning system and has no capability to be used during the day or night without further assembly and alignment. AGM Wolf-7 SKD Kit (no IIT) is sold under AGM OEM program to authorized manufacturers who are certified in assembly of electrooptical devices. The Wolf-7 is a high-tech, durable and versatile Night Vision goggles. Packed with high-tech features, the Wolf-7 is equally suited for security, hunting and recreation purposes. The Wolf-7 can be hand-held or mounted on a headgear. This kit can be equipped with high-performance Gen 2+ image intensifier tube in green or white phosphor version. The Wolf-7 features bright light shut-off circuitry and a built-in IR illuminator.
AGM Wolf-7 Body Kit Objective Lens, Housing, Eyepiece, Battery Adapter, no IIT.SKD kit of assembled parts for Wolf-7 night vision goggles
Image Intensifier Tube is not included
Compact, rugged design
Head mountable for hands-free usage
Ergonomic, simple, easy to operate controls
Utilizes single CR123A Lithium or AA Alkaline battery, adapter included
Built-in infrared illuminator
| Image Intensifier Tube | Compatible IIT Type 10130 |
| Magnification | 1x |
| Lens System | 24 mm; F/1.2 |
| FOV | 40° |
| Focus Range | 0.25 m to Infinity |
| Diopter Adjustment | -5 to +5 diopters |
| Led Indicators | - Low Battery - IR On - Excessive Level of Light |
| Automatic Brightness Control | Yes |
| Infrared Illuminator | Yes |
| Bright Light Cut-Off | Yes |
| Automatic Shut-Off System | Yes |
| Battery Type | One CR123A (3V) or AA Alcaline (1.5 V) |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Storage Temperature Range | -50°C to +70°C (-58°F to +158°F) |
| Weight | 0.45 kg (0.9 lb) |
| Overall Dimensions | 188 × 122 × 70 mm (7.4 × 4.8 × 2.8 in) |
| Battery Life | Up to 60 hours at 20°C |
