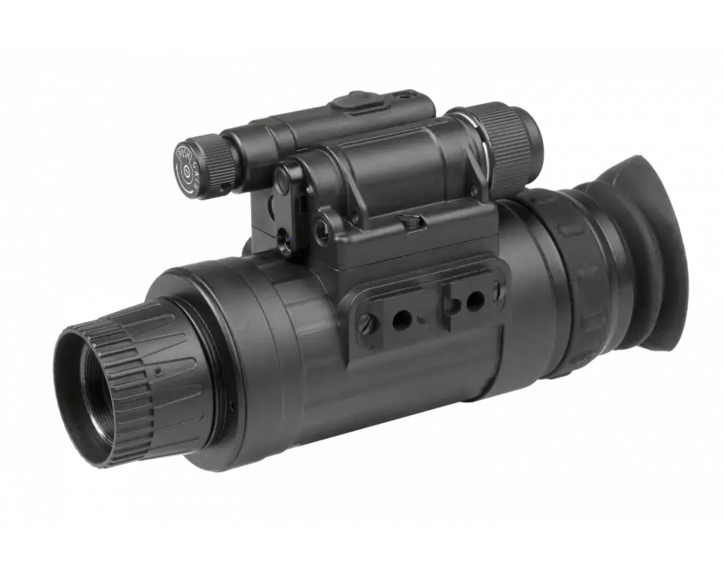

AGM Wolf-14 SKD Kit is a set of parts required to assemble Wolf-14 night vision monocular. The kit does not include Image Intensifier Tube. It is not a functioning system and has no capability to be used during the day or night without further assembly and alignment. AGM Wolf-14 SKD Kit (no IIT) is sold under AGM OEM program to authorized manufacturers who are certified in assembly of electrooptical devices. The Wolf-14 is a high-tech, durable and versatile Night Vision monocular. Packed with high-tech features, the Wolf-14 is equally suited for security, hunting and recreation purposes. The Wolf-14 can be hand-held or mounted on a headgear. This kit can be equipped with high-performance Gen 2 image intensifier tube in green or white phosphor version. Long-range nighttime view is available in seconds with a variety of compatible lenses. The Wolf-14 features bright light shut-off circuitry and a built-in spot/ flood IR illuminator.
AGM Wolf-14 Body Kit Objective Lens, Housing, Eyepiece, Battery Adapter (no IIT)SKD kit of assembled parts for Wolf-14 night vision monocular
Image Intensifier Tube is not included
Compact, rugged design
Head mountable for hands-free usage
Ergonomic, simple, easy to operate controls
Utilizes single CR123A lithium battery or AA Alkaline, adapter included
Built-in Infrared illuminator and flood lens
| Image Intensifier Tube | Compatible IIT Type G2G |
| Magnification | 1x |
| Lens System | 27 mm; F/1.2 |
| FOV | 40° |
| Focus Range | 0.25 m to Infinity |
| Eye Relief | 21.5 mm |
| Diopter Adjustment | -5 to +5 diopters |
| Led Indicators | - Low Battery - IR On - Excessive Level of Light |
| Infrared Illuminator | Yes |
| Bright Light Cut-Off | Yes |
| Automatic Shut-Off System | Yes |
| Battery Type | One CR123A (3V) or AA (1.5 V) |
| Battery Life (Operating) | Up to 40 hours at 20°C |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Storage Temperature Range | -50°C to +50°C (-58°F to +122°F) |
| Weight | 0.46 kg (1.0 lb) |
| Overall Dimensions | 157 × 60 × 75 mm (6.1 × 2.3 × 2.9 in) |
