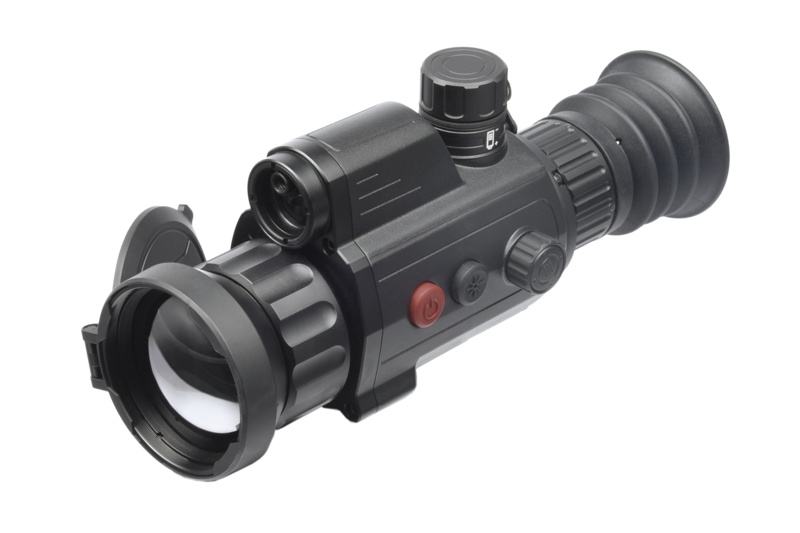

The Varmint LRF series of thermal riflescopes from AGM utilize many of the features that shooters have come to know and love in the everpopular Rattler product family, but with one big addition: a 600-meter integrated laser rangefinder. This feature helps alleviate a common issue many shooters find themselves experiencing when hunting with any sort of digital optic, and that is the lack of depth perception that is inherent in optics utilizing a digital screen. The Varmint LRF pairs that LRF functionality with a 12 micron high-sensitivity thermal detector, which works in conjunction with a high quality 1024x768 OLED display. The Varmint LRF scopes are powered by a single, non-proprietary, 18650 rechargeable battery, which provides users with 4.5 hours of continuous use in the field. The compact design of the Varmint LRF even allows some dual-use functionality as a handheld monocular as well, which helps in surveying your surroundings before the spotting and stalking has begun. Pairing excellent optical performance with built-in recording, Wi-Fi compatibility through the AGM Connect app, external power options through the mini USB port, multiple reticle options, multiple color palettes, and 16GB of internal storage capacity, make the Varmint LRF one of the most functionally diverse products in the AGM family
| Detector Type | 12 μm VOx Uncooled Focal Plane Arrays |
| Resolution | 640 × 512 |
| Refresh Rate | 50 Hz |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 35 mk (@25°C), F#=1.0 |
| Lens System | 50 mm; F1.0 |
| Field of View (H×V) | 8.78° × 7.03° |
| Magnification | 2.5× – 20× |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Detection Range (6’ object) | 2,500 m/yd |
| Eye Relief | 45 mm |
| Monitor | 1024x768, 0.39 inch, OLED |
| FFC (Flat Field Correction) | Auto, Manual, External Correction |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| Highest Temperature Spot Tracking | Yes |
| Scene Mode | Jungle, Recognition |
| Reticle | 5 types, 4 colors, on/off |
| Laser Range Finder | Up to 600 m, ±2 m accuracy |
| Laser Wavelength | 905 nm |
| Laser Safety Class | Class 1 |
| Boresight Adjustment | Digital Controlled |
| Boresight Increment | 0.15 mil / 0.51 MOA |
| One Scale Interval (Reticle #4) | 2 mil / 6.75 MOA |
| WiFi Hotspot | Yes |
| Sleep Mode | Yes |
| Picture In Picture Mode | Yes |
| Burn Prevention | Yes |
| Built-in Storage | 16 GB EMMC |
| Video Recording | On-board video recording |
| Image Capture | Yes |
| CVBS Output | Yes (via USB) |
| Battery Type | One 18650 (3.7V) Lithium Rechargeable Batteries |
| Battery Operating Time (WiFi off) | Up to 4.5 hours |
| Battery Capacity Display | Yes |
| External Power | 5 VDC/2 A, USB Type-C |
| Working Temperature | -20°C to 55°C (-4°F to 131°F) |
| Protection Level | IP67 |
| Drop Test Height | 1.5 m (4.9 ft) |
| Dimensions (L×W×H) | 210 × 74 × 109 mm (8.3 × 2.9 × 4.3 in) |
| Weight (w/o batteries) | 722 g (1.59 lb) |
Hard Case
PART NO.: 6610HCS1
Protective case, made of solid, robust material and designed special for safe storage and transportation.
AGM Solar Power Bank 30000 Mah
PART NO.: 6628XPB31
This universal power bank / QI charger is equipped with a solar panel that captures the energy of daylight and converts it charging power for your devices. You can charge any devices because it has built-in Micro-USB, USB-C and Lighting cables as well as QI wireless technology. With a rugged shockproof body, rain-proof design and a 30,000 mAh battery, it’s ideal for long, extreme hikes. Simply attach this rain-resistant solar-powered battery pack to your backpack and your gadgets will always have extra power.
see more
AGM-2118 ADM Single Lever QR Mount for Varmint LRF Family and Neith DS/DC Family
PART NO.: 63061181
AGM knows that your riflescope is typically only as reliable as your mounting solution, so AGM has sought out and partnered with one of the most reliable names in American-made mounting systems, American Defense Mounts. We offer this AGM-2118, a newly designed mount from ADM, specific to the Varmint LRF thermal riflescopes and the Neith family of digital riflescopes & clip-ons. This mount is optimized in both height and length in order to offer experienced shooters as much flexibility as possible when utilizing our AGM rifle mounted optics on a multitude of the most common shooting platforms. All ADM-equipped mounts offer tightening adjustability with no tools required, which makes tightening in the field quick and easy. This weapon mount is constructed solely using high-quality aluminum parts.
Weight: 98 g / 3.5 oz
Dimensions: 121 x 50 x 26 mm / 4.7 x 2.0 x 1.0 inches
AGM Thermal Targets 25pcs
PART NO.: 633125S1
Long, low profile one-piece mount
PART NO.: 0581RXH
Special, longer weaver mount, low profile, made specifically to fit on Merkel RX Helix and similar rifles.
Length of the mount is 125 mm and spacing between locking levers (center to center) is 110 mm.
Can be used also on Sako S20, CZ600 Alpha and Ergo, Haenel Jaeger NXT, Sabatti Saphire.
Material: Base -> High-grade steel, CNC machined from solid
material, black oxide. Upper part (adapter for NV/Thermal
device) -> high grade aluminium alloy
Recoil lug: milled from solid material (no insert)
Fixation: QR levers - adjustable and can be put in position as
you like
Distance: from first locking point to second 53 mm
Fits: Picatinny rails with minimum length of 90 mm
AGM-2112 ADM Short Single Lever QR Mount for Rattler TS family
PART NO.: 6306SMR1
AGM knows that your riflescope is typically only as reliable as your mounting solution, so AGM has sought out and partnered with one of the most reliable names in American-made mounting systems, American Defense Mounts. We offer this AGM-2112, a mount from ADM specifically designed for the Rattler TS family of thermal imaging riflescopes. This mount is optimized to offer experienced shooters as much flexibility as possible when utilizing our AGM rifle mounted optics on a multitude of the most common shooting platforms with Weaver/Picatinny rail. All ADM mounts offer tightening adjustability with no tools required, which makes tightening in the field quick and easy. This weapon mount is constructed solely using high-quality aluminum parts.
AGM Thermal Targets 50pcs
PART NO.: 633150S1
