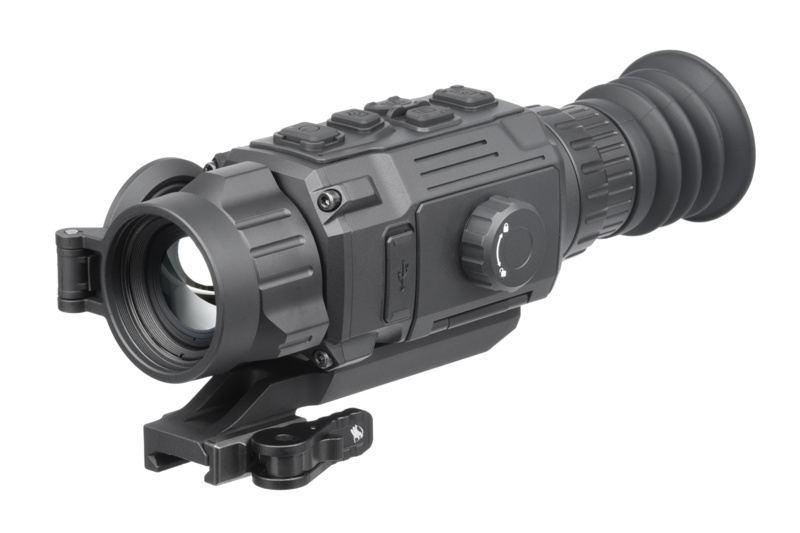

We took our Best Selling Thermal Scope and Made it Better! - Introducing the AGM RattlerV2 35-384
This thermal scope features a 35mm Germanium lens, a 384 x 288 resolution thermal sensor, and a 3x base magnification with a detection range of up to 1800 m/yd. Out of the two 384-resolution options, this thermal scope has a higher base magnification and a slightly narrower Field of View a (7.5° × 5.6° or 40 ft @ 100 yards) giving you a healthy mix of scanning coverage with improved identification capabilities at further distances.
The RattlerV2 35-384 includes features familiar to AGM Rattler users, with some additional game-changing improvements such as an upgraded battery compartment that accommodates a rechargeable battery extending run time to 11 hours and a new 12-micron thermal sensor that has the highest sensitivity rating (sub-20 mk) on the market.
Notable features include Shot Activated Recording, a simplified menu layout, and 10 reticle options with multiple zeroing profiles for various calibers and rifles. The scope also comes with a custom ADM QD Mount for easy removal and reattachment, Wi-Fi hotspot connectivity through the AGM app, a user-friendly, raised 5-button layout for easy navigation, even with gloves, and much more!
| Detector | 12μm VOx Uncooled Focal Plane Array |
| Resolution | 384 × 288 |
| NETD | Less than 20 mK (25°C, F# = 1.0) |
| Refresh Rate | 50 Hz |
| Lens System | 35 mm; F/1.0 |
| Magnification | 3× - 24× |
| Field of View | 7.5° × 5.6° |
| Diopter Adjustment | -5 to +5 diopters |
| Focus Range | 2 m to infinity |
| Exit Pupil | 6 mm |
| Eye Relief | 45 mm |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Detection Range (6’ object) | 1800 m/yd |
| Display | 0.39-inch, OLED, 1024×768 |
| Palettes | Black hot, White hot, Red hot, Fusion |
| Flat Field Correction | Auto, Manual, External Correction |
| Scene Mode | Cold, Warm |
| Boresight Adjustment | Digital Controlled |
| Video/Audio Recording | Yes |
| Image Capture | Yes |
| Standby Mode | Yes |
| Storage | Built-in EMMC (16 GB) |
| PIP | Yes |
| Defective Pixel Correction | Yes |
| WiFi Hotspot | Yes |
| Hot Track | Yes |
| Reticle | 10 types, 4 colors, on/off |
| Distance Measurement | Yes (Stadiametric) |
| Shot Activated Recording (SAR) | Yes |
| Battery Type | Replaceable and Rechargeable Li-ion Battery |
| Battery Life (Operating, 20°C) | Up to 11 hours (25°C, with hotspot off) |
| External Power Supply | 5 VDC, 2 A, USB Type-C |
| Operating Temperature Range | -30°C to +55°C (-22°F to 131°F) |
| Protection Level | IP67 |
| Max. Recoil | 1000 g/0.4 ms |
| Weight (w/o mount and battery) | 0.51 kg (1.13 lb) |
| Dimensions (w/o mount) | 221 × 68 × 67 mm (8.7 × 276 × 2.6 in) |
| Package Includes | Thermal Imaging Rifle Scope, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case |
Hard Case
PART NO.: 6610HCS1
Protective case, made of solid, robust material and designed special for safe storage and transportation.
AGM Solar Power Bank 30000 Mah
PART NO.: 6628XPB31
This universal power bank / QI charger is equipped with a solar panel that captures the energy of daylight and converts it charging power for your devices. You can charge any devices because it has built-in Micro-USB, USB-C and Lighting cables as well as QI wireless technology. With a rugged shockproof body, rain-proof design and a 30,000 mAh battery, it’s ideal for long, extreme hikes. Simply attach this rain-resistant solar-powered battery pack to your backpack and your gadgets will always have extra power.
see more
AGM NE-4400 Ratler V2 Rechargeable Battery
PART NO.: 6308R4401
This replaceable, powerful, rechargeable Li-Ion battery is specifically designed to power AGM RattlerV2, Rattler-C V2, and Clarion series thermal devices
Capacity - 4,400 mAh
Nominal Voltage - 3.6 V
Standard Charge Current - 1.32 A
Standard Discharge Current - < 1 A
Compatible Devices:
- RattlerV2 Series
- Rattler-C V2 Series
- Clarion Series
Dimensions - 55.9 x 37.4 x 34 mm (2.20 x 1.47 x 1.34 in)
AGM Thermal Targets 25pcs
PART NO.: 633125S1
Long, low profile one-piece mount
PART NO.: 0581RXH
Special, longer weaver mount, low profile, made specifically to fit on Merkel RX Helix and similar rifles.
Length of the mount is 125 mm and spacing between locking levers (center to center) is 110 mm.
Can be used also on Sako S20, CZ600 Alpha and Ergo, Haenel Jaeger NXT, Sabatti Saphire.
Material: Base -> High-grade steel, CNC machined from solid
material, black oxide. Upper part (adapter for NV/Thermal
device) -> high grade aluminium alloy
Recoil lug: milled from solid material (no insert)
Fixation: QR levers - adjustable and can be put in position as
you like
Distance: from first locking point to second 53 mm
Fits: Picatinny rails with minimum length of 90 mm
AGM NE-Charger for Rattler V2
PART NO.: 6308R44C1
This AGM NE-Charger can be used to charge the NE-4400 battery pack. This replaceable, rechargeable Li-Ion battery is
specifically designed to power AGM RattlerV2, Rattler-C V2, and Clarion series thermal devices.
Compatible Battery - AGM NE-4400
Rechargeable Li-Ion battery
Compatible Devices
- RattlerV2 Series
- Rattler-C V2 Series
- Clarion Series
Power Input - 5V / 2A
(power supply not included)
Power Output - 4.2V / 1.35A
Weight 95 g (3.35 oz)
Dimensions 80.4 × 76.1 × 38.3 mm
(3.16 x 2.96 x 1.51 in)
Package Includes
- Charger Base
- Charging Cord
AGM Thermal Targets 50pcs
PART NO.: 633150S1
