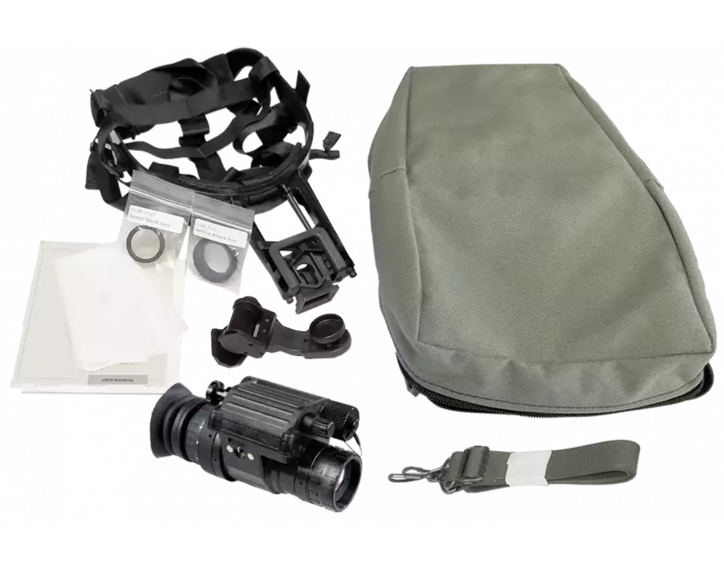

AGM PVS-14 SKD Kit is a set of parts required to assemble PVS-14 night vision monocular. The kit does not include Image Intensifier Tube. It is not a functioning system and has no capability to be used during the day or night without further assembly and alignment. AGM PVS-14 SKD Kit (no IIT) is sold under AGM OEM program to authorized manufacturers who are certified in assembly of electrooptical devices. The PVS-14 is a high-tech, durable and versatile Night Vision monocular. Packed with high-tech features, the PVS-14 is equally suited for security, hunting and recreation purposes. The PVS-14 can be hand-held or mounted on a headgear. This kit can be equipped with high-performance Gen 2 or Gen 3 image intensifier tube in green or white phosphor version. Long-range nighttime view is available in seconds with a variety of compatible lenses. The PVS-14 features bright light shut-off circuitry and a built-in IR illuminator.
AGM PVS14-MG-11769 Body Kit Objective Lens, Housing, Eyepiece, (no IIT).| Image Intensifier Tube | Compatible IIT Type 11769 |
| Magnification | 1x |
| Lens System | 19 mm; F/1.26 |
| FOV | 51° |
| Focus Range | 0.25 m to Infinity |
| Diopter Adjustment | -6 to +2 diopters |
| Led Indicators | - Low Battery - IR On - Excessive Level of Light |
| Infrared Illuminator | Yes |
| Manual Gain Control | Yes |
| Bright Light Cut-Off | Yes |
| Battery Type | One AA Alcaline (1.5 V) |
| Battery Life (Operating) | Up to 50 hours at 20°C |
| Operating Temperature Range | -51°C to +49°C (-60°F to +120°F) |
| Storage Temperature Range | -51°C to +85°C (-60°F to +185°F) |
| Weight | 0.32 kg (12.4 oz) |
| Overall Dimensions | 114 × 63 × 69 mm (4.5 × 2.5 × 2.7 in) |
