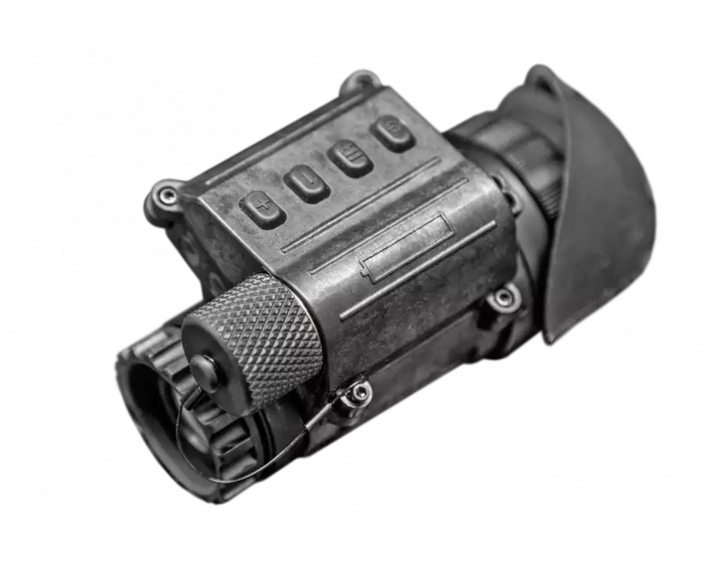

AGM PVS-14 OMEGA SKD Kit is a set of parts required to assemble PVS-14 OMEGA night vision monocular. The kit does not include Image Intensifier Tube. It is not a functioning system and has no capability to be used during the day or night without further assembly and alignment. AGM PVS-14 OMEGA SKD Kit (no IIT) is sold under AGM OEM program to authorized manufacturers who are certified in assembly of electro-optical devices. The AGM PVS14-OMEGA operates with just 4 controls, similar to the AN/PVS-14: one button for power on/off, one button for turning on and off the IR LED, and two switches (+/-) for raising and lowering the Gain Control. The PVS14-OMEGA has an extended field of view. Its 51° FOV covers a large visual range, without requiring the operator to shift the position of the device.
AGM PVS-14 OMEGA Body Kit Objective Lens, Housing, Eyepiece, (no IIT).SKD kit of assembled parts for PVS-14 OMEGA night vision monocular
Image Intensifier Tube is not included
Wide 51° field of view
Manual gain control
Built-in infrared illuminator
Powered by single AA battery
IR/Low Battery indicator
Head or helmet-mountable
| Image Intensifier Tube | Compatible IIT Type 11769 |
| Magnification | 1x |
| Lens System | 19 mm; F/1.26 |
| FOV | 51° |
| Focus Range | 0.25 m to Infinity |
| Diopter Adjustment | -6 to +2 diopters |
| Led Indicators | - Low Battery - IR On - Excessive Level of Light |
| Infrared Illuminator | Yes |
| Manual Gain Control | Yes |
| Bright Light Cut-Off | Yes |
| Battery Type | One AA Alcaline (1.5 V) |
| Battery Life (Operating) | Up to 50 hours at 20°C |
| Operating Temperature Range | -51°C to +49°C (-60°F to +120°F) |
| Storage Temperature Range | -51°C to +85°C (-60°F to +185°F) |
| Weight | 0.24 kg (8.4 oz) |
| Overall Dimensions | 102 × 63 × 69 mm (4.0 × 2.5 × 2.7 in) |
