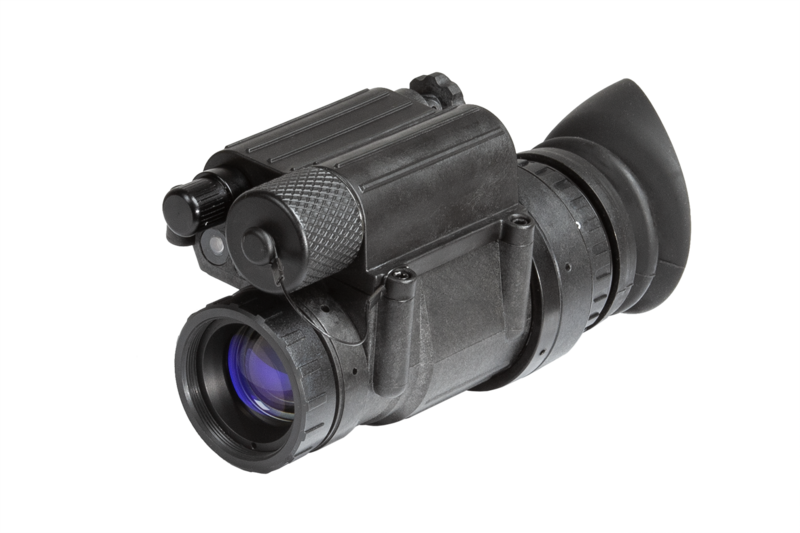

AGM PVS-14E NL1 AGM PVS-14E NL1 Enhanced Night Vision Monocular

PART NO.: 11PE41284153011

€ 3,558.00

Package Includes

Downloads

Data Sheet

Description and Features

In 2024, AGM Global Vision expands on its commitment to continuous improvement by updating the tried-and-true PVS-14 night vision system. AGM’s New PVS-14E is an enhanced version that offers subtle, but crucial, improvements in its battery system flexibility and overall weight.
The AGM PVS-14E Night Vision Monocular is a rugged, lightweight, and multi-purpose night vision device that can be used in some of the most challenging environments. The PVS-14E can be used as a handheld device, mounted on the included head harness.
Equipped with an Advanced Auto Shut-off System, the PVS-14E saves power and enhances convenience by turning off and back on automatically when the device is articulated to the side and back into operating position again.
The PVS-14E is outfitted with a more compact lens and eyepiece bringing the total unit weight to just 10.2 oz (290 grams). The unit has a flexible power delivery system making it compatible with AA and CR123 batteries, this system ensures uninterrupted operation by not limiting you to one battery choice. The unit is also equipped with an electronic polarity switching system which means you don’t have to worry about installing the battery in a specific orientation. Just place the battery in the compartment and you’re ready to go!
The unit includes manual gain control, an automatic bright light shut- off feature, and a built-in Infrared (IR) illuminator. The bright light
shut-off feature ensures that the high-quality photocathode tube is protected. When the light level returns below the threshold, the device will turn back on automatically. Because of AGM Global Vision’s commitment and confidence in product quality, the PVS-14E is backed by a 3-Year Warranty. This unit conforms to 810G Military standards and demonstrates the highest quality form and function beyond military standards.

Unique electronic controller
Auto shut-off and manual gain control
Multiple battery compatibility (AA or CR123)
Automatic on/off switching system when articulating the device out of your view
More compact and lighter than a conventional PVS-14: 4.25 in / 108 mm and 10.2 oz / 290 g
Easy-to-use controls and adjustments
Versatile mounting options
Manual gain control
Built-In IR illuminator
Waterproof and rugged
3-year warranty

SPECIFICATIONS

Cosmetic level of IIT	NL1 the best quality
Ressolution	64 lp/mm
Image Intensifier Tube	Gen 2+ "Level 1 International" (green phosphor tube)
Visible Spots	Clear FOV
NL1	manually selected tubes, featured advanced clear-cut image. Image’s quality approximates to Gen 3 level.
Magnification	1x
Lens System	26 mm; F/1.2
FOV	40°
Focus Range	0.25 m to infinity
Diopter Adjustment	-6 to +2 diopters
LED Indicators (in the FOV)	- Low Battery - IR On - Excessive Light Conditions
Manual Gain Control	Yes
Bright Light Cut-Off	Yes
Infrared Illuminator	Yes
Battery Type	One AA Alkaline or one AA Lithium L91 or one CR123 Lithium or one AA or RCR123 rechargeable battery up to 3.7V
Battery Life (Operating)	Up to 40 hours at 20°C
Operating Temperature Range	-51° C to +49° C (-60° F to 120° F)
Storage Temperature Range	-51° C to +85° C (-60° F to 185° F)
Weight	290 g (10.2 oz)
Dimensions (w/o lens cap and eyecup)	108 × 63 × 69 mm (4,25 × 2,5 × 2,7 in)
Package Includes	Night Vision Monocular, Head Mount Assembly, Lens Cap/ Daylaight Filter, Eye Cup, Head Mount Adapter, Soft Carrying Case, Neck Cord, Lens Paper, Sacrificial Window, Demist Shield, Manual, Battery

optional equipment

Hard Case

PART NO.: 6610HCS1

Protective case, made of solid, robust material and designed special for safe storage and transportation.

Email for quote

AGM Afocal Magnifier Lens Assembly, 3X

PART NO.: 61023XA1

High-performance Afocal lenses quickly convert the night vision monoculars or goggles into a long-range night vision devices. The AGM afocal lenses incorporate very fast optics and perfect field of view. Ideal for long range observation. Afocal lens by AGM is simple and quick to install in front of existing front lens of night vision device for instant visual enhancement. To mount the afocal lens to the device, screw it into the threading of the standard 1X objective lens.

€ 347.00

AGM Afocal Magnifier Lens Assembly, 5X

PART NO.: 61025XA1

€ 553.00

AGM PVS14 Binocular Bridge

PART NO.: 6104XP4B1

The AGM PVS-14 Binocular Bridge is designed to mount two PVS-14 monoculars, which makes it possible to obtain night vision binoculars (hereinafter referred to as goggles). The design of the bridge mount provides adjustment of the interpupillary distance, removal of each of the monocular from the field of view and its switching off. AGM upgraded Dovetail Rhino Helmet mount is required (Part # 6103DHMS1) in order to activate auto shut off/on system

€ 623.00

AGM PVS14 J-Arm Dovetail Adapter

PART NO.: 6103XDJ41

AGM J-Arm Dovetail Adapter with NVG Interface Shoe and automatic shut off and shut on feature allows 130 degrees of motion accommodates right or left eye dominance. This Adapter is only compatible with the PVS-14 series of night vision monoculars and utilizes a dovetail interface.

€ 176.00
