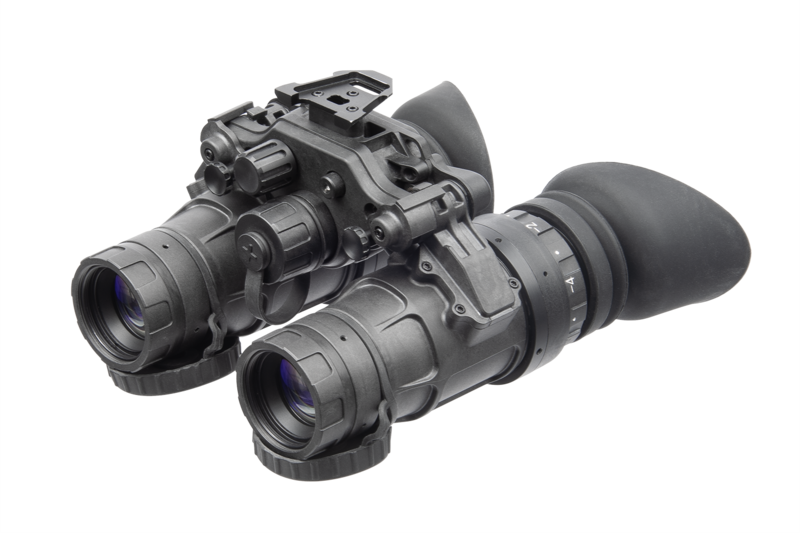

AGM UNVG AP Dual Tube Night Vision Goggle/Binocular

PART NO.: 12UN41284123111
product
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
€ 9,534.00
Add to cart
Package Includes
    Night Vision Goggles | External Battery Pack | Connecting Cable with Battery Adapter | Demist Shield (2) | Sacrificial Window (2) | Neck Strap | Carrying Case | Lens Cloth | User Manual | AA Battery
Downloads

Description and Features

The AGM UNVG is a dual-channel night vision system. The UNVG uses advanced multi-coated optics and is built to last with a compact composite housing. The device can be outfitted with a Gen 2+ or Gen 3 high-performance image intensifier tube (IIT). The bright light cut-off feature ensures that the high-quality photocathode tube is protected. The UNVG is also equipped with manual gain control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. The independent movement of the pods allows for single or dual eye configurations for increased operational flexibility. Each tube will automatically turn off when flipped up. Operating from a single AA alkaline battery, the UNVG can run up to 15 hours. With an external battery pack (included), the operating time increases to 60 hours! Also equipped with an integral infrared illuminator for reading in the dark. The device can be installing to a either standard dovetail type headset and helmet mount.

  • Low Power Consumption Design: Utilizes single AA battery or external battery pack.
  • Flip-Up Auto Off Feature: Each tube will automatically turn off when flipped up out of the way.
  • Corrosion and Impact-Resistant Housing: Matte black finish with PEEK+Glass fiber material for longevity.
  • Quick Attachment Design: Dovetail base support for strong compatibility and durability.
  • PVS-14-style Compatible: Objective lens and eyepiece lens are compatible with PVS-14 style components and attachments.
  • Independent Pod Movement: Pods can roll up and down for quick configuration changes.
  • Ultralight Housing: 17.6 oz / 500 g weight means improved mobility, responsiveness, and reduced fatigue.
  • Single/Double Eye Configuration: Pods independently adjustable for improved operational flexibility.
  • IR Complement Function: Infrared illuminator for enhanced visibility in total darkness and close quarters environments.
  • Manual Gain Control: Adjust image intensifier gain for optimal vision preferences.
  • New Simplified IP Stop Design: Improve IP Stop design allows you to set your tube positions to what is most comfortable for the user.

SPECIFICATIONS

Image Intensifier Tube Advance Perfermance Auto-Gated Gen 2+ Auto-Gated, P43-Green Phosphor IIT.
Cosmetic level of IIT AP the best quality
Resolution 60-64 lp/mm
Visible Spots Clear FOV
AP manually selected tubes, featured advanced clear-cut image. Image’s quality approximates to Gen 3 level.
Magnification 1x
Lens System 25mm, F/1.23
FOV 40°
Exit Pupil Diameter 14 mm
Focus Range 0.25 m to Infinity
Diopter Adjustment -6 to +2 diopters
Interpupillary Distance 56 to 72 mm
Eye Relief 25mm
Manual Gain Control Yes
Bright Light Cut-Off Yes
Flip-up Turn-Off System Yes
Infrared Illuminator Yes
Battery Type One AA (1.5 V) or External Battery Pack (four AA or two CR123A)
Battery Life (Operating, 20°C, IR off) One AA - up to 15 hours External Battery Pack (four AA) - up to 60 hours External Battery Pack (two CR123A) - up to 40 hours
Operating Temperature Range -40°C to +50°C (-40°F to +122°F)
Storage Temperature Range -50°C to +70°C (-58°F to +158°F)
Protection Level IP67
Weight (w/o barreries) Goggles: 500 g (1.1 lb) External Battery Pack: 250 g (0.55 lb)
Overall Dimensions 101 × 116 × 85 mm (4.0 × 4.6 × 3.3 in)
Package Includes Night Vision Goggles, External Battery Pack, Connecting Cable with Battery Adapter, Demist Shield (2), Sacrificial Window (2), Neck Strap, Carrying Case, Lens Cloth, User Manual, AA Battery
