Applicable to:
AGM PVS-7 (All Versions),

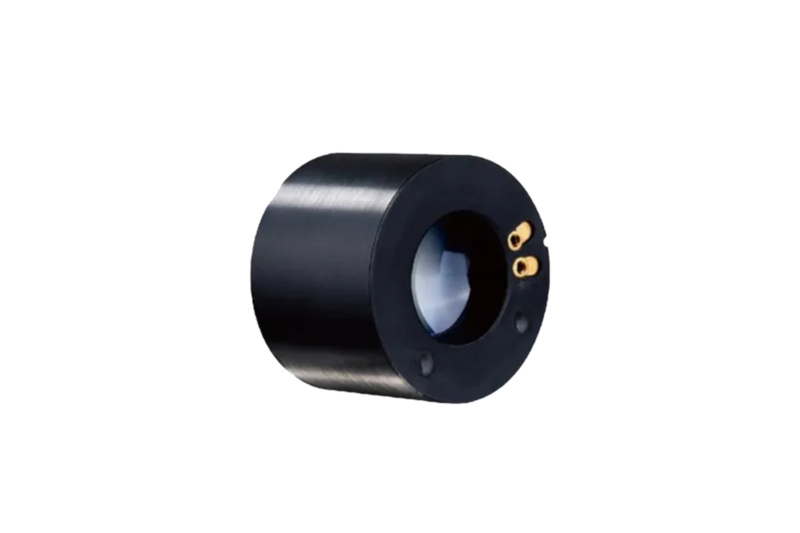

The AGM 10130 Gen 2+ image intensifiers are 18 mm NT’s designed in a compact and drop-in format. They consist of a Multi-Alkaline
photocathode, microchannel plate, built-in power supply and P-43 (Green Phosphor) or P-45 (White Phosphor) phosphor screen
deposited on an non inverting fiberoptic output window. AGM 10130 Series 18mm Gen 2+ Image Intensifiers can be used
in night vision devices such as PVS-7, FoxBat-LE, Comanche 22, along with number of other systems available on consumer market.
AGM Global Vision offers Gen 2 image intensifier tubes in three levels: NL1/NW1, NL2/NW2, and NL3/NW3. The main difference
between the levels is resolution and cosmetics.
NL1 - Gen 2+ green phosphor tube (P-43) with resolution ranging from 55 to 72 lp/mm. NL1 is the highest resolution and the cleanest
Gen 2 IIT offered by AGM. There are practically no visible spots in Zone 1.
NL2 - Gen 2+ green phosphor tube (P-43) with resolution ranging from 51 to 64 lp/mm. NL2 is the second-best quality
Gen 2 IIT offered by AGM, very limited number of spots in Zone 1. NL3 - Gen 2+ green phosphor tube (P-43) with resolution ranging
from 47 to 54 lp/mm. NL3 offers good quality at competitive pricing.
NW1 – Gen 2+ white phosphor tube (P-45) uses white phosphor instead of standard green phosphor providing black and
white imaging which is more suitable for some users. Resolution range within 55-72 lp/mm. NW1 is offered with high quality white
phosphor Gen 2 IIT and practically no visible spots in Zone 1.
NW2 – Gen 2+ white phosphor tube (P-45) with resolution ranging from 51 to 64 lp/mm. NW2 is the secondbest quality white phosphor
Gen 2 IIT offered by AGM with very limited number of spots in Zone 1.
Dark spots (Contrast>30%)
Diameter,μm
|
Number of allowable dark spots |
<Φ5.6mm |
Φ5.6mm~Φ14.7mm |
Φ14.7mm~Φ17.5mm |
300 |
0 |
0 |
0 |
225~300 |
0 |
0 |
0 |
150~225 |
0 |
1 |
2 |
75~150 |
1 |
3 |
3 |
