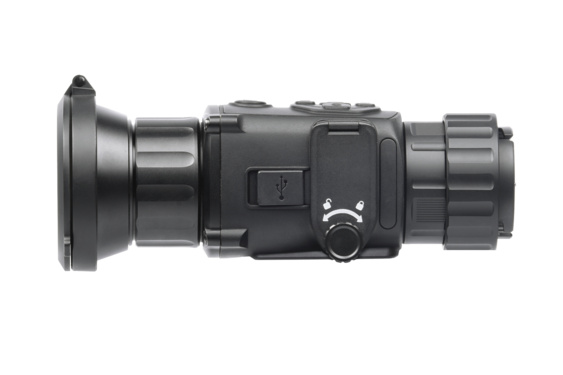

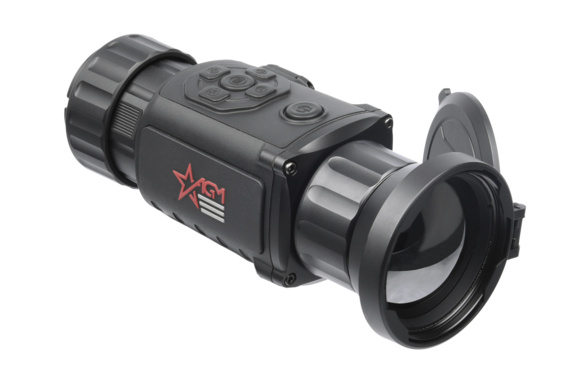

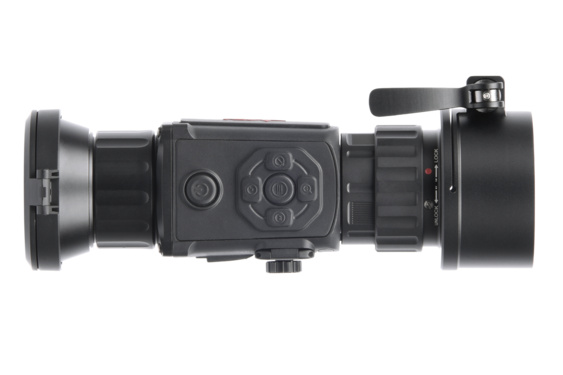

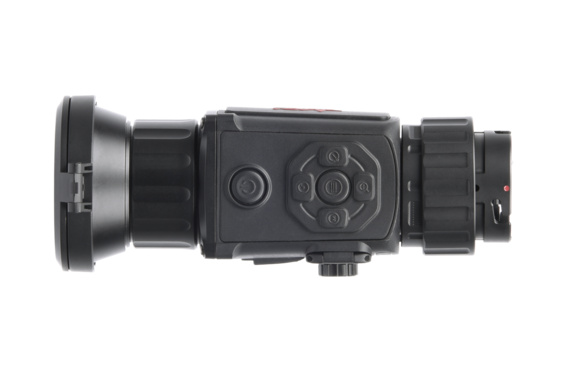

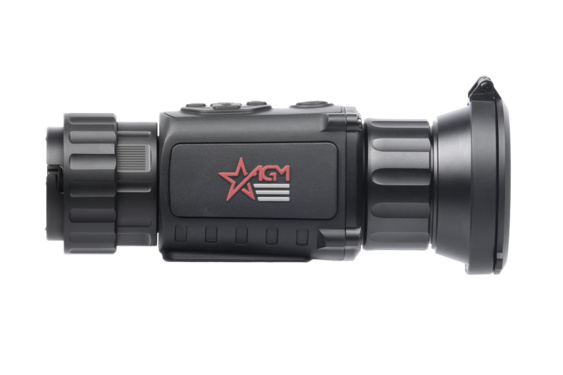

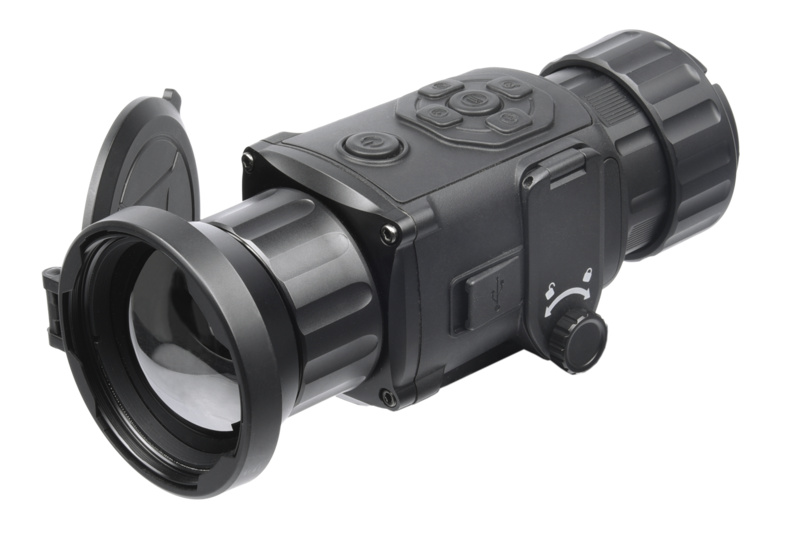

Refurbished AGM Rattler TC50-640 THERMAL CLIP-ON SYSTEM

PART NO.: #3092756006TC51

€ 2,359.00

Package Includes

Downloads

Description and Features

The AGM Rattler TC50-640 is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. Rattler TC50-640 has high sensitivity 12μm thermal detector with 640×512 resolution and 1024x768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc.
The product is mainly applied to scenarios such as patrolling, hunting, etc. The Rattler TC50-640 can easily be attached in front of rifle scopes with magnification up to 8x for long range use.
Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.

Quick conversion of daytime optics into thermal imaging scope
12μm high sensitivity detector
640x512 thermal resolution
1024x768 resolution 0.39-inch OLED display
8x digital zoom
Video recording and snapshot, built-in EMMC (16 GB)
Supports distance measurement
Adjustable color palettes
Wi-Fi data transmission
Waterproof, shockproof
Up to 4.5 hours continuous working
External power supply capability
3-Year warranty

SPECIFICATIONS

Detector Type	12 μm VOx Uncooled Focal Plane Arrays
Resolution	640 × 512
Refresh Rate	Sensor 50 Hz / OLED 50 Hz
Response Waveband	8 μm to 14 μm
Lens System	50 mm, F1.0
Field of View (HxV)	8.8° × 7.0°
Magnification	1x
Diopter Adjustement	-5 to +3 dpt
Exit Pupil	22 mm
Observation Distance	2,500 m
Monitor	1024×768, 0.39 inch, OLED
Uniformity Correction (Flat Field Correction)	Auto, Manual, External Correction
Palettes	Black Hot, White Hot, Red Hot, Fusion
Highest Temperature Spot Tracking	Yes
Scene Mode	Jungle, Recognition
Distance Measurement	Yes (Stadiometric Rangefinder)
Highest Temperature Spot Tracking	Yes
Standby Mode	Yes
Built-in Storage	16 GB EMMC
Record Video	On-board video recording
Capture Snapshot	Yes
CVBS Output	Yes (via USB)
Battery Type	Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
Battery Operating Time	Up to 4.5 hours continuous running (@25°C, WiFi off) Up to 4.0 hours continuous running (@25°C, WiFi on)
Battery Capacity Display	Yes
Power	5 VDC/2 A, USB Type-C interface Supports external power supply
Working Temperature	-20°C to 55°C (-4°F to 131°F)
Protection Leve	IP67
Shock and Vibration	750 g/ms
Mounting	Optional Front Quick Release Adapters for different front lens diameter or Quick Release Mount for Picatinny/Weaver rail
Dimension	153 mm × 78 mm × 66 mm (6.0 × 3.1 × 2.6 in)
Weight (w/o batteries)	0.49 kg (1.08 lb)

optional equipment

AGM Eyepiece for Rattler TC models

PART NO.: 6328ERC1

€ 246.00

AGM-2113 ADM Single Lever QR Mount (Hight: 1.03

PART NO.: 6306LSR1

AGM knows that your riflescope is typically only as reliable as your mounting solution, so AGM has sought out and partnered with one of the most reliable names in American-made mounting systems, American Defense Mounts. We offer this AGM-2113, a mount from ADM specifically designed for the Rattler TС family of thermal imaging clip-ons. This mount is optimized in both height and length in order to offer experienced shooters as much flexibility as possible when utilizing our AGM rifle mounted optics on a multitude of the most common shooting platforms with Weaver/Picatinny rail. All ADM mounts offer tightening adjustability with no tools required, which makes tightening in the field quick and easy. This weapon mount is constructed solely using high-quality aluminum parts.

Weight: 98 g / 3.5 oz
Dimensions: 121 x 50 x 26 mm / 4.7 x 2.0 x 1.0 inches

Fast and easy installation
Lightweight and durable all-metal design
For mounting to any Weaver or Picatinny rails
Easy-to-use adjustable brackets with torque preset

€ 196.00

AGM Thermal Targets 25pcs

PART NO.: 633125S1

€ 30.00

Front Q-R adapter for Rattler TC: ARM52-38 mm

PART NO.: 6306RC381

€ 180.00

AGM-2114 ADM Low Base Single Lever QR Mount (Hight: 0.78

PART NO.: 63061141

AGM knows that your riflescope is typically only as reliable as your mounting solution, so AGM has sought out and partnered with one of the most reliable names in American-made mounting systems, American Defense Mounts. We offer this AGM-2114, a low base mount from ADM specifically designed for the Rattler TС family of thermal imaging clip-ons. This mount is optimized in both height and length in order to offer experienced shooters as much flexibility as possible when utilizing our AGM rifle mounted optics on a multitude of the most common shooting platforms with Weaver/Picatinny rail. All ADM mounts offer tightening adjustability with no tools required, which makes tightening in the field quick and easy. This weapon mount is constructed solely using high-quality aluminum parts.

Weight: 83 g / 2.9 oz
Dimensions: 63 x 50 x 20 mm / 3.7 x 2.0 x 0.8 inches
