limited quantity - 4 pcs

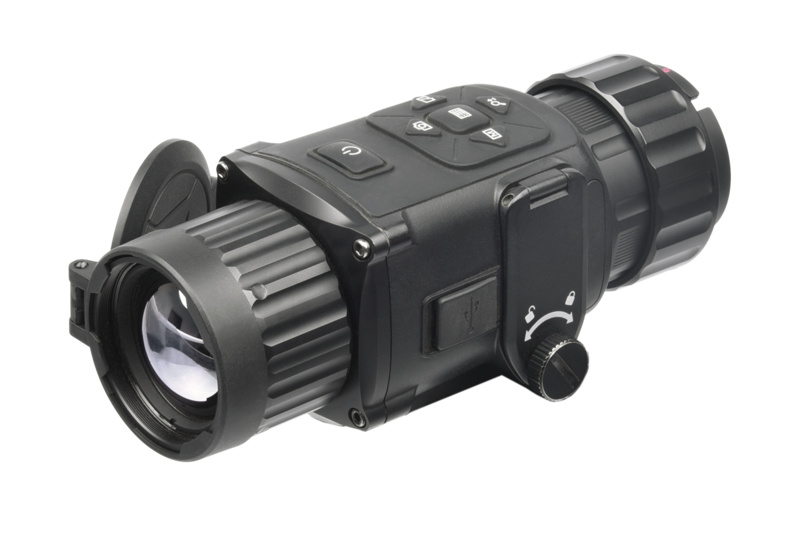

The AGM Rattler TC35-384 is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal
imaging device without any special tools or equipment.
Rattler TC35-384 has 384×288 thermal detector and 748×561 OLED monitor, which provides clear image under harsh environment conditions
like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The product is mainly applied to scenarios such as patrolling, hunting, etc.
The Rattler TC35-384 can easily be attached in front of rifle scopes with magnification up to 8x for medium range use.
Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.
| Detector | 17μm, Uncooled, 50Hz |
| Resolution | 384x288 |
| Lens System | 35 mm; F/1.0 |
| Magnification | 1x |
| Field Of View | 10.0° x 8.0° |
| Digital Zoom | 2x, 4x, 8x |
| Observation Distance | Max. 1235 m |
| Diopter Adjustement | -5 to +3 dpt |
| Display | 0.39-inch, OLED, 748×561 |
| Hotspot | Yes |
| Distance Measurement | Yes |
| Scene Mode | Jungle, Recognition |
| Standby Mode | Yes |
| Video Recording | Yes |
| Picture Snapshot | Yes |
| DPC | Yes |
| PIP | Yes |
| Uniformity Correction | Auto, Manual, External Correction |
| Storage | Built-in EMMC (16 GB) |
| Battery Type | 2x Replaceable Applicable type: CR123A, RCR123A |
| Battery Life (Operating) | Up to 4.5 hr |
| External Power Supply | 5V USB |
| Operating Temperature Range | -20°C to +55°C (-4°F to +131°F) |
| Degree of Protection | IP67 |
| Shock and Vibration | 750 g/ms |
| Weight | 0.42 kg (0.93 lb) |
| Overall Dimensions | 153.2 × 62.5 × 59.2 mm (6.03 × 2.46 × 2.33 in) |
AGM Eyepiece for Rattler TC models
PART NO.: 6328ERC1
AGM-2113 ADM Single Lever QR Mount (Hight: 1.03
PART NO.: 6306LSR1
AGM knows that your riflescope is typically only as reliable as your mounting solution, so AGM has sought out and partnered with one of the most reliable names in American-made mounting systems, American Defense Mounts. We offer this AGM-2113, a mount from ADM specifically designed for the Rattler TС family of thermal imaging clip-ons. This mount is optimized in both height and length in order to offer experienced shooters as much flexibility as possible when utilizing our AGM rifle mounted optics on a multitude of the most common shooting platforms with Weaver/Picatinny rail. All ADM mounts offer tightening adjustability with no tools required, which makes tightening in the field quick and easy. This weapon mount is constructed solely using high-quality aluminum parts.
AGM-2114 ADM Low Base Single Lever QR Mount (Hight: 0.78
PART NO.: 63061141
AGM knows that your riflescope is typically only as reliable as your mounting solution, so AGM has sought out and partnered with one of the most reliable names in American-made mounting systems, American Defense Mounts. We offer this AGM-2114, a low base mount from ADM specifically designed for the Rattler TС family of thermal imaging clip-ons. This mount is optimized in both height and length in order to offer experienced shooters as much flexibility as possible when utilizing our AGM rifle mounted optics on a multitude of the most common shooting platforms with Weaver/Picatinny rail. All ADM mounts offer tightening adjustability with no tools required, which makes tightening in the field quick and easy. This weapon mount is constructed solely using high-quality aluminum parts.
