Refurbished AGM ASP-Micro TM-384 THERMAL IMAGING MONOCULAR

PART NO.: 3093451001AM30

€ 899.00 € 1,199.00

Other Models ARE Also Available:

Package Includes

Downloads

Description and Features

limited quantity 8 pcs

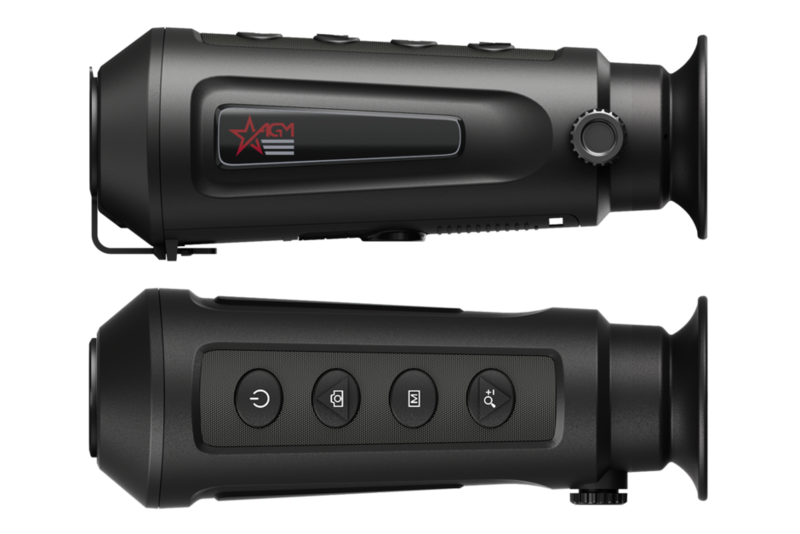

The Asp-Micro handheld observational thermal monocular is equipped with a 384×288 infrared detector and a 720×540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, antismuggling, criminal seizing, hiking, travel, and hunting, etc.

Please contact us for additional information info@agmglobalvision.eu
AGM ASP Micro Overview. Read more at TheFirearmBlog

FUNCTIONS

Distance Measurement:
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.

Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.

Mode Switch:
Device supports pallet switch and distance measurement.

Storage:
Built-in memory module supports video recording/snapshot capturing.

Digital Zoom:
Device supports 1×, 2×, 4×, 8x digital zoom.

Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.

384×288 resolution, high sensitivity detector
Adaptive AGC, DDE, 3D DNR
720×540 resolution LCOS display
Built-in rechargeable Lithium battery
More than 7 hours continuous running (with Wi-Fi hotspot function off)
Wi-Fi hotspot
Type-C interface
6 months warranty
free shipping within EU

SPECIFICATIONS

Detector Type	Vanadium Oxide Uncooled Focal Plane Arrays
Resolution	384×288
Refresh Rate	50 Hz
Recognition Range	(Vehicles: 1.4×4.0m) - 338m (Humans: 1.8×0.5m) - 110m
Detection Range	(Vehicles: 1.4×4.0m) - 1353m (Humans: 1.8×0.5m) - 441m
Identification Range	(Vehicles: 1.4×4.0m) - 169m (Humans: 1.8×0.5m) - 55m
Response Waveband	8μm to 14μm
Diopter Adjustement	-3 to +1 dpt
NETD	less than 35 mk (@25°C), F#=1.0
Lens (Focal Length)	15 mm
Aperture	F1.0
Field of View	16.51° × 12.42° (H × V)
Magnification	1×
Digital Zoom	1×, 2×, 4×, 8x
Monitor	720×540, 0.2 inch, LCOS
FFC (Flat Field Correction)	Auto, Manual, External Correction
Palettes	Black Hot, White Hot, Red Hot, Fusion
Highest Temperature Spot Tracking	Yes
Wi-Fi Hotspot	Yes
Standby Mode	Yes
Storage	Built-in memory module (8 GB)
Record Video	On-board video recording
Capture Snapshot	Yes
Battery Type	Built-in rechargeable Lithium battery
Battery Operating Time	More than 7 hours continuous running (with Wi-Fi hotspot function off)
Battery Capacity Display	Yes
Power	5 VDC/2 A, 1.5 W, USB Type-C Interface
Working Temperature	-20°C to 55°C (-4°F to 131°F)
Protection Level	IP67
Drop Test Height	1.5 m (4.9 feet)
Dimension	161 × 61 × 57 mm (6.3 × 2.4 × 2.2 in)
Weight	270 g (0.6 lb)
