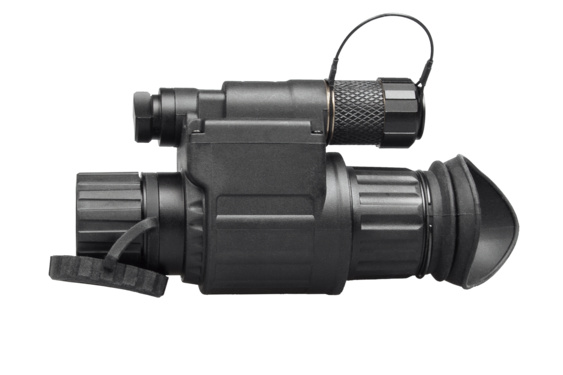

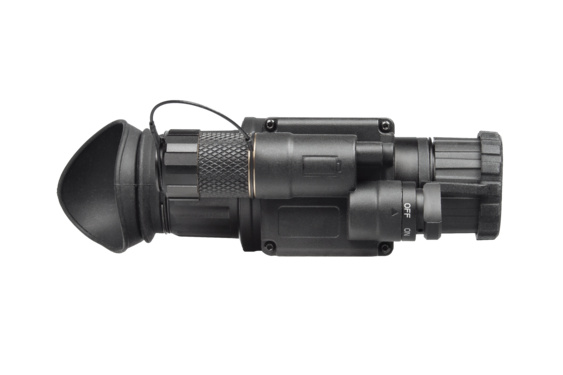

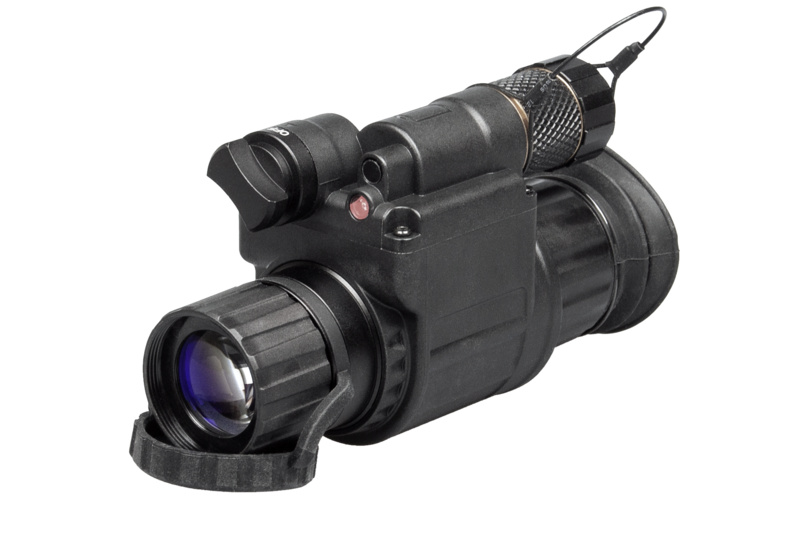

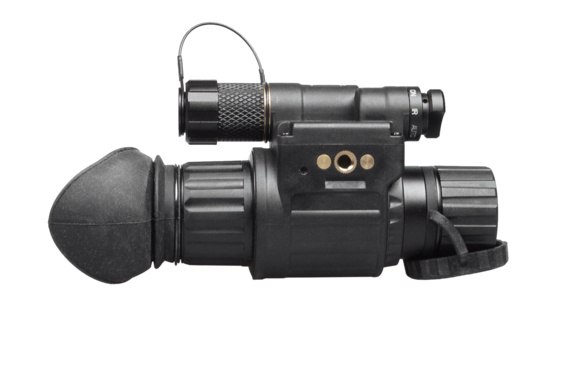

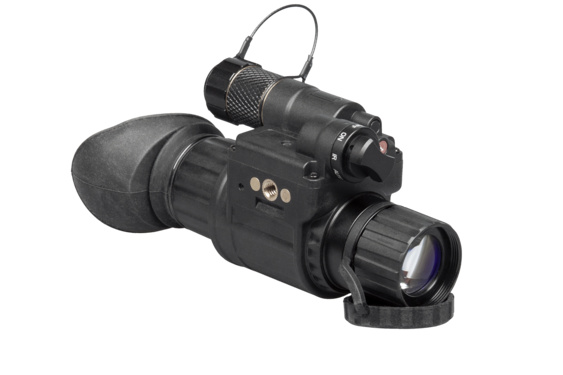

The Wolf-14 is a high-tech, durable and versatile Night Vision monocular that delivers great performance at a reasonable price. Packed with high-tech features, the Wolf-14 is equally suited for security professionals as it is for hunting and recreation. The Wolf-14 can be hand-held or mounted on a headgear. A specialized mount enables the ability to mount in front of a camcorder or camera makes it ideal for night photography. With a variety of compatible lenses, long-range nighttime viewing is available in seconds. The Wolf-14 features bright light shut-off circuitry and a built-in spot/flood IR illuminator. The Wolf-14 can be equipped with high-performance Gen 2 image intensifier tubes in green or white phosphor.
| Image Intensifier Tube | Gen 2+"Green Phosphor" |
| Resolution | 47-55 lp/mm |
| Magnification | 1x |
| Lens System | 25 mm; F/1.2 |
| FOV | 42° |
| Focus Range | 0.25 m to Infinity |
| Diopter Adjustment | -5 to +5 diopters |
| LED Indicators (in the FOV) | - Low Battery - IR On - Excessive Level of Light |
| Bright Light Cut-Off | Yes |
| Infrared Illuminator | Yes |
| Battery Type | One CR123A (3V) |
| Battery Life (Operating) | Up to 40 hours at 20°C |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Storage Temperature Range | -50°C to +70°C (-58°F to +158°F) |
| Environmental Rating | IP65 |
| Weight | 292 g (0.5 lb) |
| Overall Dimensions | 115 × 69 × 74 mm (4.5 × 2.7 × 2.9 in) |
AGM Afocal Magnifier Lens Assembly, 3X
PART NO.: 61023XA1
High-performance Afocal lenses quickly convert the night vision monoculars or goggles into a long-range night vision devices. The AGM afocal lenses incorporate very fast optics and perfect field of view. Ideal for long range observation. Afocal lens by AGM is simple and quick to install in front of existing front lens of night vision device for instant visual enhancement. To mount the afocal lens to the device, screw it into the threading of the standard 1X objective lens.
AGM Soft Head Gear for Wolf-14
PART NO.: 6104HW41

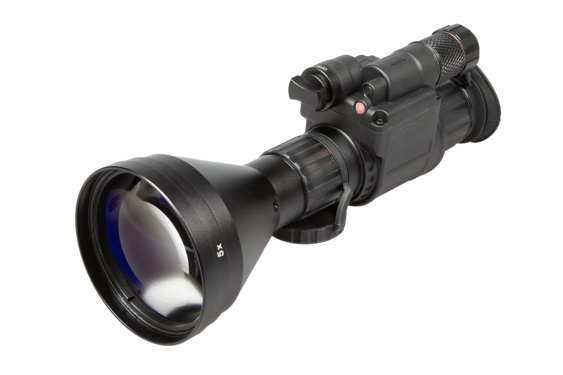

AGM Afocal Magnifier Lens Assembly, 5X
PART NO.: 61025XA1
High-performance Afocal lenses quickly convert the night vision monoculars or goggles into a long-range night vision devices. The AGM afocal lenses incorporate very fast optics and perfect field of view. Ideal for long range observation. Afocal lens by AGM is simple and quick to install in front of existing front lens of night vision device for instant visual enhancement. To mount the afocal lens to the device, screw it into the threading of the standard 1X objective lens.
