AGM PVS14-51 NL1I ECHO IIT Gen 2+ "Photonis Autogated" Manual Gain control ECHO IIT green

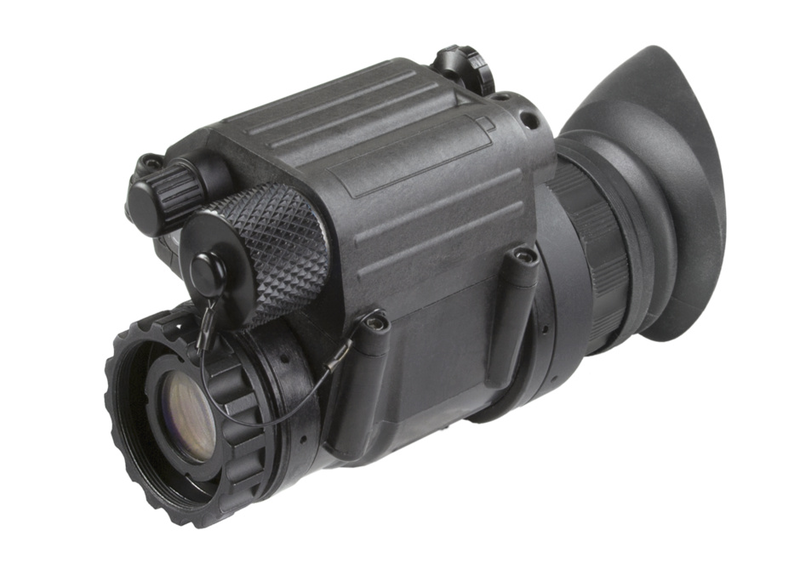

The AGM PVS14-51 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device. This monocular is used globally in some of the most challenging environments. The PVS-14 can be used as a hand-held device, or mounted on the included head harness.
The PVS14-51 has an extended field of view. Its 51° FOV overs
a large visual range, without requiring the operator to shift the position of the device. The PVS14-51 monocular is a full-featured
unit, weighing less than 10.6 ounces/300 grams. The unit includes manual gain control, an automatic bright light shut-off feature, and
a built-in Infrared (IR) illuminator. The bright light shut-off feature ensures that the high-quality photocathode tube is protected.
AGM’s PVS14-51 includes an array of optional accessories to support virtually any operation.
|
| Image Intensifier Tube | Gen 2+ "Level 1" "Photonis Autogated" Manual Gain control ECHO IIT |
| Cosmetic level of IIT | NL1 the best quality |
| Resolution | 57-74 lp/mm |
| FOM | 1600-2000 |
| SNR | 23-28 |
| Visible Spots | Clear FOV |
| NL1 | manually selected tubes, featured advanced clear-cut image. Image’s quality approximates to Gen 3 level. |
| Magnification | 1x |
| Lens System | 19 mm; F/1.26 |
| FOV | 51° |
| Focus Range | 0.25 m to infinity |
| Diopter Adjustment | -6 to +2 diopters |
| LED Indicators (in the FOV) | - Low Battery - IR On - Excessive Light Conditions |
| Manual Gain Control | Yes |
| Bright Light Cut-Off | Yes |
| Infrared Illuminator | Yes |
| Battery Type | One AA 1.5V Alkaline battery |
| Battery Life (Operating) | Up to 50 hours at 20°C |
| Operating Temperature Range | -51° C to +49° C (-60° F to 120° F) |
| Storage Temperature Range | -51° C to +85° C (-60° F to 185° F) |
| Weight | 300 g (10.6 oz) |
| Dimensions (w/o lens cap and eyecup) | 102 × 63 × 69 mm (4.0 × 2.5 × 2.7 in) |
Hard Case
PART NO.: 6610HCS1
Protective case, made of solid, robust material and designed special for safe storage and transportation.
AGM Sioux940 Long-Range Infrared Illuminator comes included with Rechargeable Battery and Charger
PART NO.: 501SIOUX940IR1
AGM Extra Long Range Infrared Illuminators provide greater, image-intensified viewing capabilities for operations in little to no ambient light. Infrared illuminators are used in areas where the level of natural light is not sufficient. An IR illuminator provides near-infrared light, which, although invisible to the naked eye, can greatly enhance the performance of Night Vision devices. The illuminator features adjustments for field-of-view divergence and output power. AGM long range IR illuminators significantly extend the capabilities of Night Vision weapon sights and observation devices.
AGM Sioux850 Long Range Infrared Illuminator with Mount, Dovetail to Weaver Transfer Piece, Rechargeable Battery, and Charger
PART NO.: 501SIOUX850IR1
AGM Extra Long Range Infrared Illuminators provide greater, image-intensified viewing capabilities for operations in little to no ambient light. Infrared illuminators are used in areas where the level of natural light is not sufficient. An IR illuminator provides near-infrared light, which, although invisible to the naked eye, can greatly enhance the performance of Night Vision devices. The illuminator features adjustments for field-of-view divergence and output power. AGM long range IR illuminators significantly extend the capabilities of Night Vision weapon sights and observation devices.
AGM Afocal Magnifier Lens Assembly, 3X
PART NO.: 61023XA1
High-performance Afocal lenses quickly convert the night vision monoculars or goggles into a long-range night vision devices. The AGM afocal lenses incorporate very fast optics and perfect field of view. Ideal for long range observation. Afocal lens by AGM is simple and quick to install in front of existing front lens of night vision device for instant visual enhancement. To mount the afocal lens to the device, screw it into the threading of the standard 1X objective lens.
AGM Afocal Magnifier Lens Assembly, 5X
PART NO.: 61025XA1
High-performance Afocal lenses quickly convert the night vision monoculars or goggles into a long-range night vision devices. The AGM afocal lenses incorporate very fast optics and perfect field of view. Ideal for long range observation. Afocal lens by AGM is simple and quick to install in front of existing front lens of night vision device for instant visual enhancement. To mount the afocal lens to the device, screw it into the threading of the standard 1X objective lens.
