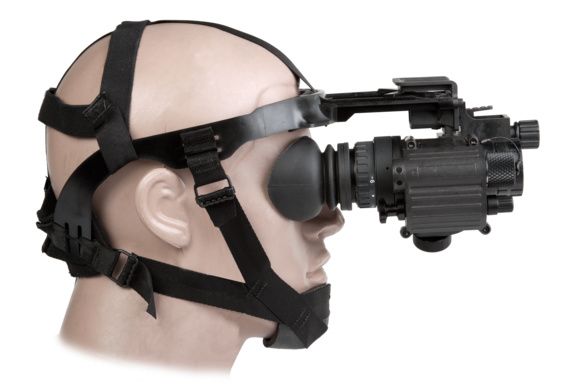

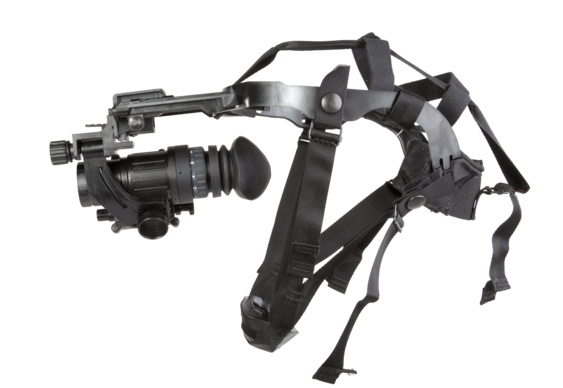

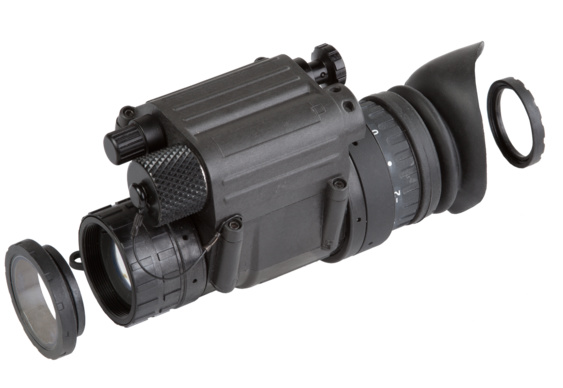

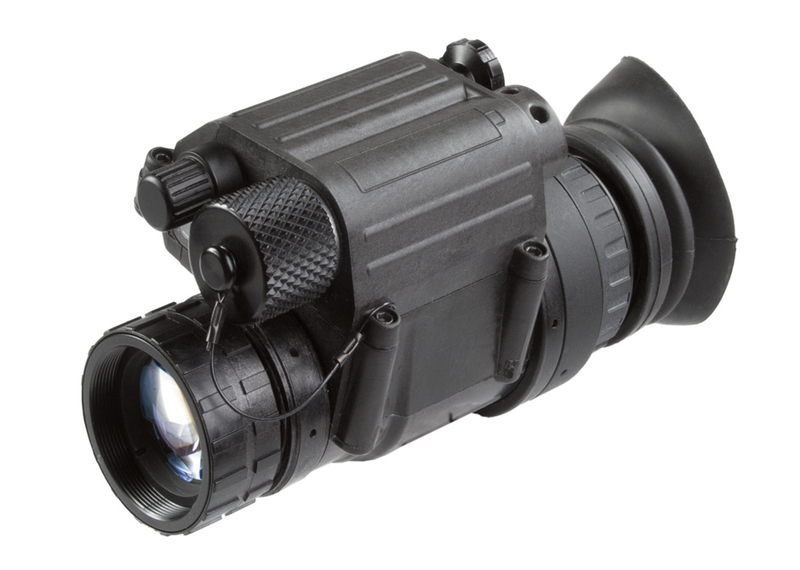

The AGM PVS-14 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device adjusted by AGM professionals for consumer electronics market and everyday use for your most daring outdoor plans. This monocular is used globally in some of the most challenging environments. Leading speleologists are using them as reliable tool for their underground trips. Nature enthusiasts are having a blast with them in the toughest jungle conditions in their search for rare species. The AGM PVS-14 can be used as a handheld device, or mounted on the included head harness in other words putting your tent or gathering the wood for the fire, night fishing or simply admiring the stars is getting more comfortable than it used to be. The PVS-14 monocular is a full-featured unit. Weighing less than 12.4 ounces/ 350 grams. The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The bright light shut-off feature ensures that inside electronics is protected. AGM’s PVS-14 includes an array of optional accessories to support your bravest plans and your adventurous way of thinking.
|
| Image Intensifier Tube | Gen 2+ "White Phosphor Level 2" International |
| Cosmetic level of IIT | NW2 very limited |
| Resolution | 60-64 lp/mm |
| Visible Spots | very limited |
| NW2 | features minimum cosmetics imperfections that allowed close to the edges and will not detract viewing. |
| Magnification | 1x (3x and 5x optional) |
| Lens System | 27mm; F/1.2 |
| FOV | 40° |
| Focus Range | 0.25 m to infinity |
| Diopter Adjustment | -6 to +2 dpt |
| Led Indicators | Low battery; IR On; Excessive light conditions |
| Manual Gain Control | Yes |
| Bright Light Cut-Off | Yes |
| Automatic Shut-Off System | Yes |
| Infrared Illuminator | Yes |
| Battery Type | One AA 1.5V Alkaline battery |
| Battery Life (Operating) | Up to 40 hours at 20°C |
| Operating Temperature Range | -51° C to +49° C (-60° F to 120° F) |
| Storage Temperature Range | -51° C to +85° C (-60° F to 185° F) |
| Weight | 0.35 kg (12.4 oz) |
| Dimensions | 114 × 63× 69 mm (4.5 × 2.5 × 2.7 in) |
AGM 51 degree FOV Lens Kit
PART NO.: 610150K1
AGM 51 degree FOV Lens Kit allows user to upgrade standard 40 degree FOV optics on their NVD. Such drastic increase from 40 to 51 degree will allow user to cover larger areas with minimum movement of NVD and makes it easier to find and keep the object in FOV.
AGM Sioux940 Long-Range Infrared Illuminator comes included with Rechargeable Battery and Charger
PART NO.: 501SIOUX940IR1
AGM Extra Long Range Infrared Illuminators provide greater, image-intensified viewing capabilities for operations in little to no ambient light. Infrared illuminators are used in areas where the level of natural light is not sufficient. An IR illuminator provides near-infrared light, which, although invisible to the naked eye, can greatly enhance the performance of Night Vision devices. The illuminator features adjustments for field-of-view divergence and output power. AGM long range IR illuminators significantly extend the capabilities of Night Vision weapon sights and observation devices.
AGM PVS14 Binocular Bridge
PART NO.: 6104XP4B1
The AGM PVS-14 Binocular Bridge is designed to mount two PVS-14 monoculars, which makes it possible to obtain night vision binoculars (hereinafter referred to as goggles). The design of the bridge mount provides adjustment of the interpupillary distance, removal of each of the monocular from the field of view and its switching off. AGM upgraded Dovetail Rhino Helmet mount is required (Part # 6103DHMS1) in order to activate auto shut off/on system
see more
AGM PVS14 J-Arm Dovetail Adapter
PART NO.: 6103XDJ41
AGM J-Arm Dovetail Adapter with NVG Interface Shoe and automatic shut off and shut on feature allows 130 degrees of motion accommodates right or left eye dominance. This Adapter is only compatible with the PVS-14 series of night vision monoculars and utilizes a dovetail interface.
see more
Weaver adapter for Infrared illuminator
PART NO.: 6107WAP1
Hard Case
PART NO.: 6610HCS1
Protective case, made of solid, robust material and designed special for safe storage and transportation.
AGM Sioux850 Long Range Infrared Illuminator with Mount, Dovetail to Weaver Transfer Piece, Rechargeable Battery, and Charger
PART NO.: 501SIOUX850IR1
AGM Extra Long Range Infrared Illuminators provide greater, image-intensified viewing capabilities for operations in little to no ambient light. Infrared illuminators are used in areas where the level of natural light is not sufficient. An IR illuminator provides near-infrared light, which, although invisible to the naked eye, can greatly enhance the performance of Night Vision devices. The illuminator features adjustments for field-of-view divergence and output power. AGM long range IR illuminators significantly extend the capabilities of Night Vision weapon sights and observation devices.

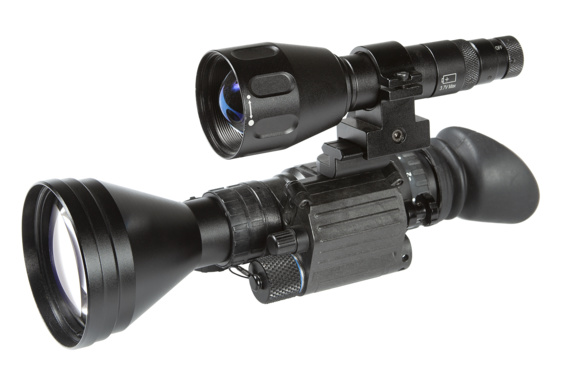

AGM Afocal Magnifier Lens Assembly, 3X
PART NO.: 61023XA1
High-performance Afocal lenses quickly convert the night vision monoculars or goggles into a long-range night vision devices. The AGM afocal lenses incorporate very fast optics and perfect field of view. Ideal for long range observation. Afocal lens by AGM is simple and quick to install in front of existing front lens of night vision device for instant visual enhancement. To mount the afocal lens to the device, screw it into the threading of the standard 1X objective lens.
AGM Afocal Magnifier Lens Assembly, 5X
PART NO.: 61025XA1
High-performance Afocal lenses quickly convert the night vision monoculars or goggles into a long-range night vision devices. The AGM afocal lenses incorporate very fast optics and perfect field of view. Ideal for long range observation. Afocal lens by AGM is simple and quick to install in front of existing front lens of night vision device for instant visual enhancement. To mount the afocal lens to the device, screw it into the threading of the standard 1X objective lens.
