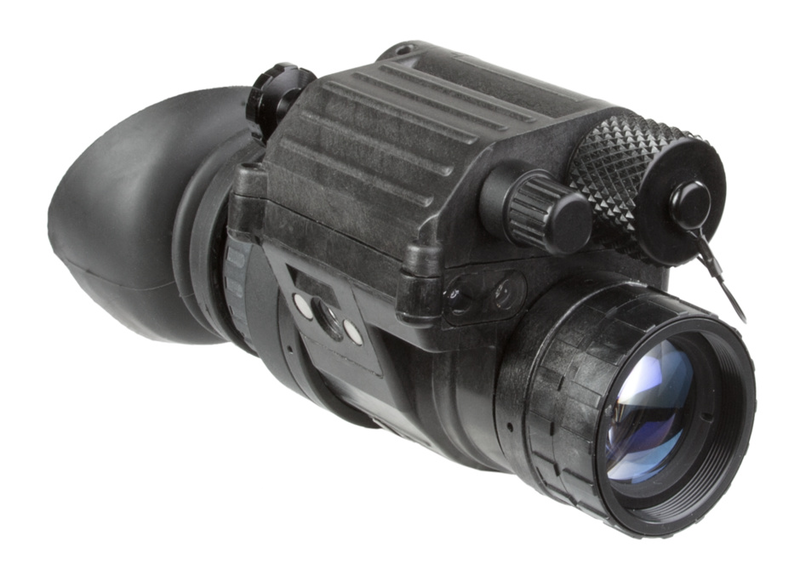

AGM PVS-14 NW1 ECHO IIT White Phosphor NIGHT VISION MONOCULAR

PART NO.: 11P14122454011E

Email for quote

Other Models ARE Also Available:

Package Includes

Downloads

export restrictions: Important Export Restrictions! Some products on this web site are meant for use or resale only within the EU zone and are subject to EU export control regulations. Licensing may be required for exporting outside the EU countries. Please contact us (info@agmglobalvision.eu) for additional information.

Description and Features

AGM PVS-14 NW Multi-Purpose HP Night Vision Monocular Gen 2+ "Photonis Autogated" Manual Gain control ECHO IIT White Phosphor

The AGM PVS-14 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device adjusted by AGM professionals for consumer electronics market and everyday use for your most daring outdoor plans. This monocular is used globally in some of the most challenging environments. Leading speleologists are using them as reliable tool for their underground trips. Nature enthusiasts are having a blast with them in the toughest jungle conditions in their search for rare species. The AGM PVS-14 can be used as a handheld device, or mounted on the included head harness in other words putting your tent or gathering the wood for the fire, night fishing or simply admiring the stars is getting more comfortable than it used to be.
The PVS-14 monocular is a full-featured unit. Weighing less than 12.4 ounces/ 350 grams. The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The bright light shut-off feature ensures that inside electronics is protected. AGM’s PVS-14 includes an array of optional accessories to support your bravest plans and your adventurous way of thinking.

LOWEST PRICE on Gen 2+ White Phosphor ECHO monocular on the market
Compact, rugged design
Waterproof
Head-mountable for hands-free usage
Manual gain control
Ergonomic, simple, easy-to-operate controls
Built-in Infrared illuminator and flood lens
3-Year warranty

SPECIFICATIONS

Image Intensifier Tube	Gen 2+ "Level 1" "Photonis Autogated" Manual Gain control ECHO IIT White Phosphor
Cosmetic level of IIT	NW1 the best quality
Resolution	57-74 lp/mm
FOM	1600-2000
SNR	23-28
Visible Spots	very limited
NW1	manually selected tubes, featured advanced clear-cut image. Image’s quality approximates to Gen 3 level.
Magnification	1x (3x and 5x optional)
Lens System	26 mm; F/1.2
FOV	40°
Focus Range	0.25 m to infinity
Diopter Adjustment	-6 to +2 dpt
Led Indicators	Low battery; IR On; Excessive light conditions
Manual Gain Control	Yes
Bright Light Cut-Off	Yes
Automatic Shut-Off System	Yes
Infrared Illuminator	Yes
Battery Type	One AA 1.5V Alkaline battery
Battery Life (Operating)	Up to 40 hours at 20°C
Operating Temperature Range	-51° C to +49° C (-60° F to 120° F)
Storage Temperature Range	-51° C to +85° C (-60° F to 185° F)
Weight	0.35 kg (0.7 lbs)
Dimensions	112 × 61 × 61 mm (4.4 × 2.4 × 2.4 in)

optional equipment

AGM 51 degree FOV Lens Kit

PART NO.: 610150K1

AGM 51 degree FOV Lens Kit allows user to upgrade standard 40 degree FOV optics on their NVD. Such drastic increase from 40 to 51 degree will allow user to cover larger areas with minimum movement of NVD and makes it easier to find and keep the object in FOV.

€ 686.00

Weaver adapter for Infrared illuminator

PART NO.: 6107WAP1

€ 47.00

Hard Case

PART NO.: 6610HCS1

Protective case, made of solid, robust material and designed special for safe storage and transportation.

Email for quote

AGM Sioux850 Long Range Infrared Illuminator with Mount, Dovetail to Weaver Transfer Piece, Rechargeable Battery, and Charger

PART NO.: 501SIOUX850IR1

AGM Extra Long Range Infrared Illuminators provide greater, image-intensified viewing capabilities for operations in little to no ambient light. Infrared illuminators are used in areas where the level of natural light is not sufficient. An IR illuminator provides near-infrared light, which, although invisible to the naked eye, can greatly enhance the performance of Night Vision devices. The illuminator features adjustments for field-of-view divergence and output power. AGM long range IR illuminators significantly extend the capabilities of Night Vision weapon sights and observation devices.

€ 175.00

AGM Afocal Magnifier Lens Assembly, 3X

PART NO.: 61023XA1

High-performance Afocal lenses quickly convert the night vision monoculars or goggles into a long-range night vision devices. The AGM afocal lenses incorporate very fast optics and perfect field of view. Ideal for long range observation. Afocal lens by AGM is simple and quick to install in front of existing front lens of night vision device for instant visual enhancement. To mount the afocal lens to the device, screw it into the threading of the standard 1X objective lens.

€ 347.00

AGM Afocal Magnifier Lens Assembly, 5X

PART NO.: 61025XA1

€ 553.00
