AGM PVS-14 OMEGA NL1 NIGHT VISION MONOCULAR

11PO4122453011i
product
thumbnail
thumbnail
thumbnail
thumbnail
DISCONTINUED
Other Models ARE Also Available:
  • AGM PVS-14 OMEGA NL2" name="other-models" class="pseudo_select__radio" id="other-pr-">
Downloads export restrictions: Important Export Restrictions! Some products on this web site are meant for use or resale only within the EU zone and are subject to EU export control regulations. Licensing may be required for exporting outside the EU countries. Please contact us (info@agmglobalvision.eu) for additional information.

Description and Features

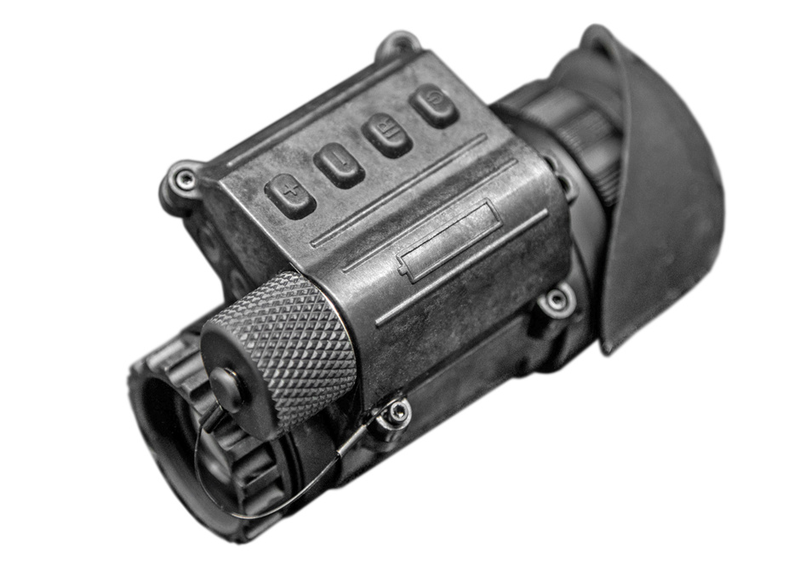

The AGM PVS14 OMEGA is the lightest multi-purpose night vision monocular currently available. The ultra-light PVS14 OMEGA is designed with light weight optics and an improved battery compartment equipped with digital push button switches that reduces the total weight of the system from 350 grams to only 260 grams.
The PVS14 OMEGA operates with just 4 controls, similar to the AN/PVS- 14: one button for power on/off, one button for turning on and off the IR LED, and two switches (+/-) for raising and lowering the Gain Control. Manufactured with US made optics and components and equipped with high-quality Gen 2+ tubes. the. The modified AGM PVS14 OMEGA retains all the characteristics of a normal AN/PVS-14, but in smaller housing dimensions. The unit features a Full Diopter Adjustment Range, Infrared LED, Gain Control, IR/Low Battery Indicator, flip up turn off and flip down turn on system and the capability to be hand-held.

level 1
maximum spots allowed in each zone*
spot size (in) zone 1 zone 2 zone 3
>.015 or larger 0 0 0
>.012 – .015 0 0 0
>.009 – .012 0 0 0
>.006 – .009 0 1 2
.003 – .006 1 2 3
note: not more than 4 spots allowed
  • Compact and light-weight design
  • Built-in Infrared illuminator
  • Powered by single AA battery
  • IR/Low Battery Indicator
  • Head or helmet-mountable
  • Made in USA
  • 3-Year Warranty


SPECIFICATIONS

Image Intensifier Tube Gen 2+ "Level 1" International
Cosmetic level of IIT NL1 the best quality
Resolution 51-64 lp/mm
Visible Spots Clear FOV
NL1 manually selected tubes, featured advanced clear-cut image. Image’s quality approximates to Gen 3 level.
Magnification 1x (3x and 5x optional)
Lens System 19 mm; F/1.26
FOV 51°
Focus Range 0.25 m to infinity
Diopter Adjustment -6 to +2 dpt
Indicators LED indicators in the FOV: Low battery; IR On; Excessive light conditions
Manual Gain Control Yes
Bright Light Cut-Off Yes
Automatic Shut-Off System Yes
Infrared Illuminator Yes
Battery Type One AA Alkaline or CR123A Lythium
Battery Life (Operating) Up to 50 hours at 20°C
Operating Temperature Range -51° C to +49° C (-60° F to 120° F)
Storage Temperature Range -51° C to +85° C (-60° F to 185° F)
Weight 0.24 kg (8.4 oz)
Dimensions 102 × 63 × 69 mm (4.0 × 2.5 × 2.7 in)

optional equipment
