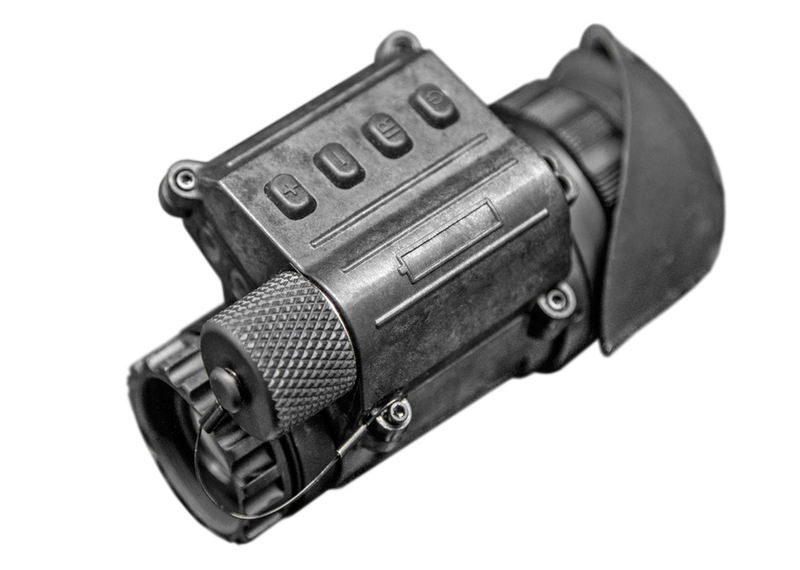

AGM PVS-14 OMEGA NL1 ECHO IIT NIGHT VISION MONOCULAR

PART NO.: 11PO4122453021E
product
thumbnail
thumbnail
thumbnail
thumbnail
Other Models ARE Also Available:
Package Includes
    Packing Box | Soft Carrying Case | Head Mount Assembly | Helmet/ Head Mount Adapter | Neck Lanyard | Sacrificial Window | Demist Shield | Battery | User Manual | Lens Tissue
Downloads export restrictions: Important Export Restrictions! Some products on this web site are meant for use or resale only within the EU zone and are subject to EU export control regulations. Licensing may be required for exporting outside the EU countries. Please contact us (info@agmglobalvision.eu) for additional information.

Description and Features


The AGM PVS14 OMEGA is the lightest multi-purpose night vision monocular currently available. The ultra-light PVS14 OMEGA is designed with light weight optics and an improved battery compartment equipped with digital push button switches that reduces the total weight of the system from 350 grams to only 260 grams.
The PVS14 OMEGA operates with just 4 controls, similar to the AN/PVS- 14: one button for power on/off, one button for turning on and off the IR LED, and two switches (+/-) for raising and lowering the Gain Control. Manufactured with US made optics and components and equipped with high-quality Gen 2+ tubes. the. The modified AGM PVS14 OMEGA retains all the characteristics of a normal AN/PVS-14, but in smaller housing dimensions. The unit features a Full Diopter Adjustment Range, Infrared LED, Gain Control, IR/Low Battery Indicator, flip up turn off and flip down turn on system and the capability to be hand-held.



level 1
maximum spots allowed in each zone*
spot size (in) zone 1 zone 2 zone 3
>.015 or larger 0 0 0
>.012 – .015 0 0 0
>.009 – .012 0 0 0
>.006 – .009 0 1 2
.003 – .006 1 2 3
note: not more than 4 spots allowed
  • Compact and light-weight design
  • Built-in Infrared illuminator
  • Powered by single AA battery
  • IR/Low Battery Indicator
  • Head or helmet-mountable
  • Made in USA
  • 3-Year Warranty


SPECIFICATIONS

Image Intensifier Tube Gen 2+ "Level 1" "Photonis Autogated" Manual Gain control ECHO IIT
Cosmetic level of IIT NL1 the best quality
Resolution 57-74 lp/mm
FOM 1600-2000
SNR 23-28
Visible Spots Clear FOV
NL1 manually selected tubes, featured advanced clear-cut image. Image’s quality approximates to Gen 3 level.
Magnification 1x (3x and 5x optional)
Lens System 19 mm; F/1.26
FOV 51°
Focus Range 0.25 m to infinity
Diopter Adjustment -6 to +2 dpt
Indicators LED indicators in the FOV: Low battery; IR On; Excessive light conditions
Manual Gain Control Yes
Bright Light Cut-Off Yes
Automatic Shut-Off System Yes
Infrared Illuminator Yes
Battery Type One AA Alkaline or CR123A Lythium
Battery Life (Operating) Up to 50 hours at 20°C
Operating Temperature Range -51° C to +49° C (-60° F to 120° F)
Storage Temperature Range -51° C to +85° C (-60° F to 185° F)
Weight 0.24 kg (8.4 oz)
Dimensions 102 × 63 × 69 mm (4.0 × 2.5 × 2.7 in)

optional equipment

Hard Case

Hard Case

PART NO.: 6610HCS1

Protective case, made of solid, robust material and designed special for safe storage and transportation.

Email for quote
AGM 51 degree FOV Lens Kit

AGM 51 degree FOV Lens Kit

PART NO.: 610150K1

AGM 51 degree FOV Lens Kit allows user to upgrade standard 40 degree FOV optics on their NVD. Such drastic increase from 40 to 51 degree will allow user to cover larger areas with minimum movement of NVD and makes it easier to find and keep the object in FOV.

€ 686.00
Add to cart
AGM Sioux850 Long Range Infrared Illuminator with Mount, Dovetail to Weaver Transfer Piece, Rechargeable Battery, and Charger

AGM Sioux850 Long Range Infrared Illuminator with Mount, Dovetail to Weaver Transfer Piece, Rechargeable Battery, and Charger

PART NO.: 501SIOUX850IR1

AGM Extra Long Range Infrared Illuminators provide greater, image-intensified viewing capabilities for operations in little to no ambient light. Infrared illuminators are used in areas where the level of natural light is not sufficient. An IR illuminator provides near-infrared light, which, although invisible to the naked eye, can greatly enhance the performance of Night Vision devices. The illuminator features adjustments for field-of-view divergence and output power. AGM long range IR illuminators significantly extend the capabilities of Night Vision weapon sights and observation devices.

€ 175.00
Add to cart
AGM Afocal Magnifier Lens Assembly, 3X

AGM Afocal Magnifier Lens Assembly, 3X

PART NO.: 61023XA1

High-performance Afocal lenses quickly convert the night vision monoculars or goggles into a long-range night vision devices. The AGM afocal lenses incorporate very fast optics and perfect field of view. Ideal for long range observation. Afocal lens by AGM is simple and quick to install in front of existing front lens of night vision device for instant visual enhancement. To mount the afocal lens to the device, screw it into the threading of the standard 1X objective lens.

€ 347.00
Add to cart
AGM Afocal Magnifier Lens Assembly, 5X

AGM Afocal Magnifier Lens Assembly, 5X

PART NO.: 61025XA1

High-performance Afocal lenses quickly convert the night vision monoculars or goggles into a long-range night vision devices. The AGM afocal lenses incorporate very fast optics and perfect field of view. Ideal for long range observation. Afocal lens by AGM is simple and quick to install in front of existing front lens of night vision device for instant visual enhancement. To mount the afocal lens to the device, screw it into the threading of the standard 1X objective lens.

€ 553.00
Add to cart
