AGM PROTECTOR PRO TM50-640 THERMAL IMAGING MONOCULAR

3142551006PP51

DISCONTINUED

Downloads

Data Sheet

Description and Features

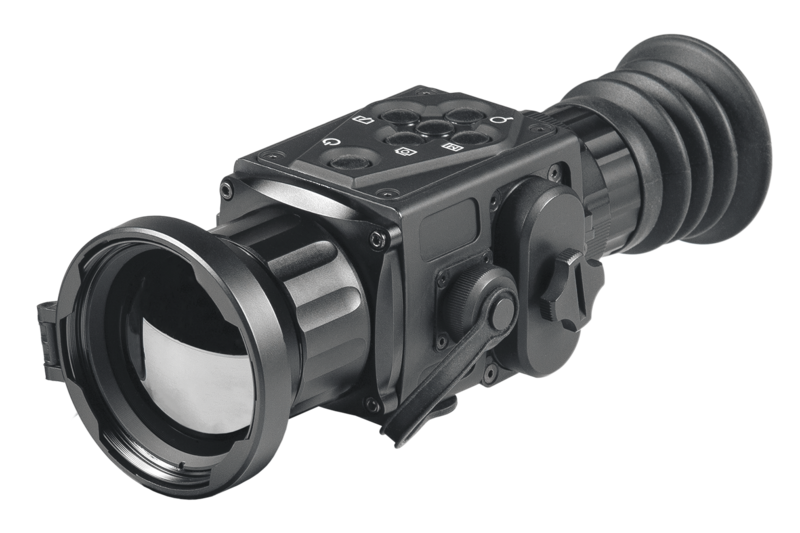

The AGM Protector PRO is the latest and most technologically-advanced thermal imaging device for observation currently offered by AGM. This monoocular is made of high-grade aluminum and magnesium alloy, making the unit both durable and lightweight. Due to its waterproof capability the device performs well even in severe weather conditions and challenging environments. The unit can be easily mounted on a tripod which grants the operator convenient/hands free use of thermal monocular.
The Protector’s user-friendly interface, with comfortable and ergonomic buttons makes using the system incredibly simple. The thermal imaging unit offers ten different image palettes that can be easily adapted depending on different environmental conditions.
This high-tech monocular can take either two CR123A 3V Lithium batteries or two RCR123 rechargeable batteries, with voltage ranging from 3.0 V to 3.7V. In addition, the external battery pack (5V) connected via Type-C port provides additional operating time. The device is equipped with 16 GB storage for on-board video recording and image capturing. Onboard Wi-Fi module is also available for live video streaming and video/ images recording via mobile application.

High-sensitivity detector
Lightweight and compact design
Dual eye viewing system for comfortable, extended viewing sessions
Easy to operate control panel
High resolution display
1x, 2x,4x and 8x digital zoom
Picture-in-Picture mode
Video recording and snapshot capturing
Built-in 16 GB EMMC memory module
Wi-Fi data transmission
Stadiametric rangefinder
Powered by two standard CR123A batteries
Up to 4.5 hours continuous working
External power supply capability
Tripod mountable
3-Year Warranty

SPECIFICATIONS

Resolution	640 × 512
Detector	12μm, Uncooled, 50 Hz
Lens System	50 mm; F/1.0
Magnification	2.5× - 20×
Field of View	8.8° × 7.0°
Digital Zoom	1×, 2×, 4×, 8×
Detection Range (6’ object)	2500 m/yd
Display	0.39-inch, OLED, 1024×768, 50 Hz
Diopter Adjustment Range	-5 to +5 dpt
Focusing Range	10 m to infinity
Distance Measurement	Yes (Stadiametric Rangefinder)
Palettes	Black Hot, White Hot, Red Hot, Fusion
Scene Mode	Jungle, Recognition
Picture In Picture Mode (PIP)	Yes (2× Zoom)
Hotspot	Yes
Standby Mode	Yes
Video Recording	Yes
Picture Snapshot	Yes
CVBS Output	Yes (via USB)
Defective Pixels Correction (DPC)	Yes
Uniformity Correction	Auto, Manual, External Correction
Storage	Built-in EMMC (16 GB)
Battery Type	Two CR123 (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
Battery Life (Operating, 20°C)	Up to 4.5 hr
External Power Supply	5 VDC/2 A, USB Type-C interface
Operating Temperature Range	-20°C to +55°C (-4°F to +131°F)
Degree of Protection	IP67
Drop Test Height	1.5m (4.9 feet)
Weight (w/o battery)	0.7 kg ( 1.5 lb)
Overall Dimensions	196 × 70× 66 mm (7.7 × 2.7 × 2.6 in)
