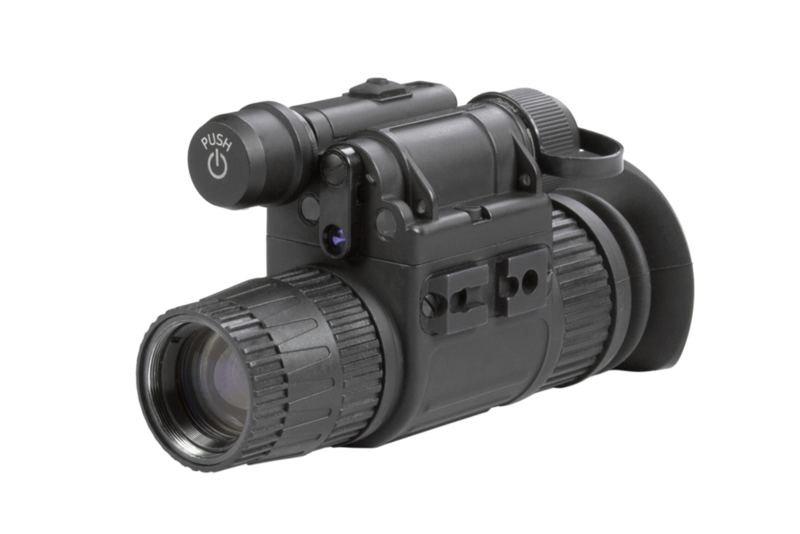

The NVM-40 is the standard by which all commercial versatile
monocular systems should be judged, now and in the future. The
NVM-40 employs best on the consumer market multi-coated
optics, built into a rugged, compact, and ergonomic composite
housing. We built this device to exceed user expectations, as
a result, the NVM-40 built around commercial grade image
intensifiers offers unmatched performance even in rain, salt
water, temperature extremes, and high-humidity environments
without costing a fortune. AGM NVM40 can be used in some of
the most challenging environments. Leading speleologists and
nature enthusiasts are having a blast with them in the toughest
jungle conditions in their search for rare species and the deepest
cave adventures. The AGM NVM40 can be used as a handheld
device, or mounted on the included head harness in other words
putting your tent or gathering the wood for the fire, night fishing
or simply admiring the stars is getting more comfortable than it
used to be.
The NVM-40 is available with a vast array of accessories,
including 3x and 5x magnification lenses for mid to long-range
viewing; head or helmet mounts to enable hands-free operation;
and, a detachable IR illuminator for long-range use.
| Image Intensifier Tube | Gen 2+ "Level 1" "Photonis Autogated" Manual Gain control ECHO IIT White Phosphor |
| Resolution | 57-74 lp/mm |
| FOM | 1600-2000 |
| SNR | 23-28 |
| Cosmetic level of IIT | NW1 the best quality |
| Visible Spots | Clear FOV |
| Gen 2+ "Level 1" "Photonis Autogated" | manually selected tubes, featured advanced clear-cut image. Image’s quality approximates to Gen 3 level. |
| Magnification | 1x (3x and 5x optional) |
| Lens System | 27 mm; F/1.3 |
| FOV | 40° |
| Focus Range | 0.25 m to Infinity |
| Eye Relief | 17 mm |
| Diopter Adjustment | -6 to +2 diopters |
| LED Indicators (in the FOV) | - Low Battery - IR On - Excessive Light Conditions |
| Automatic Brightness Control | Yes |
| Bright Light Cut-Off | Yes |
| Automatic Shut-Off System | Yes |
| Infrared Illuminator | Yes; Two power levels |
| Battery Type | One CR123A (3V) or AA (1.5 V) |
| Battery Life (Operating) | Up to 40 hours at 20°C |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Storage Temperature Range | -50°C to +50°C (-58°F to +122°F) |
| Weight | 0.34 kg (0.75 lb) |
| Overall Dimensions | 175 × 57 × 80 mm (6.9 × 2.2 × 3.1 in) |
| Dimensions (without Eyecup and Lens Cap) | 122 × 49 × 73 mm (4.8 × 1.9 × 2.8 in) |
AGM Cap Goggle Kit W
PART NO.: 6104GKW1
AGM Cap Goggle Kit allows mounting of night vision device onto cap contruction for hands-free use.
AGM Sioux940 Long-Range Infrared Illuminator comes included with Rechargeable Battery and Charger
PART NO.: 501SIOUX940IR1
AGM Extra Long Range Infrared Illuminators provide greater, image-intensified viewing capabilities for operations in little to no ambient light. Infrared illuminators are used in areas where the level of natural light is not sufficient. An IR illuminator provides near-infrared light, which, although invisible to the naked eye, can greatly enhance the performance of Night Vision devices. The illuminator features adjustments for field-of-view divergence and output power. AGM long range IR illuminators significantly extend the capabilities of Night Vision weapon sights and observation devices.
AGM Demist Shield NVM40
PART NO.: 6101DS41
The demist shield prevents condensation on the optics during long use and rapid temperature changes.
AGM Sacrificial Window NVM40
PART NO.: 6101SS41
The sacrifical window protects your night vision optics from dust, dirt and bad weather. It is quite useful in high winds or storm conditions. This sacrificial window can be discharged or replaced and your optics remains untouchable and in good condition.
Hard Case
PART NO.: 6610HCS1
Protective case, made of solid, robust material and designed special for safe storage and transportation.
AGM Sioux850 Long Range Infrared Illuminator with Mount, Dovetail to Weaver Transfer Piece, Rechargeable Battery, and Charger
PART NO.: 501SIOUX850IR1
AGM Extra Long Range Infrared Illuminators provide greater, image-intensified viewing capabilities for operations in little to no ambient light. Infrared illuminators are used in areas where the level of natural light is not sufficient. An IR illuminator provides near-infrared light, which, although invisible to the naked eye, can greatly enhance the performance of Night Vision devices. The illuminator features adjustments for field-of-view divergence and output power. AGM long range IR illuminators significantly extend the capabilities of Night Vision weapon sights and observation devices.
AGM Afocal Magnifier Lens Assembly, 3X
PART NO.: 61023XA1
High-performance Afocal lenses quickly convert the night vision monoculars or goggles into a long-range night vision devices. The AGM afocal lenses incorporate very fast optics and perfect field of view. Ideal for long range observation. Afocal lens by AGM is simple and quick to install in front of existing front lens of night vision device for instant visual enhancement. To mount the afocal lens to the device, screw it into the threading of the standard 1X objective lens.
AGM Afocal Magnifier Lens Assembly, 5X
PART NO.: 61025XA1
High-performance Afocal lenses quickly convert the night vision monoculars or goggles into a long-range night vision devices. The AGM afocal lenses incorporate very fast optics and perfect field of view. Ideal for long range observation. Afocal lens by AGM is simple and quick to install in front of existing front lens of night vision device for instant visual enhancement. To mount the afocal lens to the device, screw it into the threading of the standard 1X objective lens.
