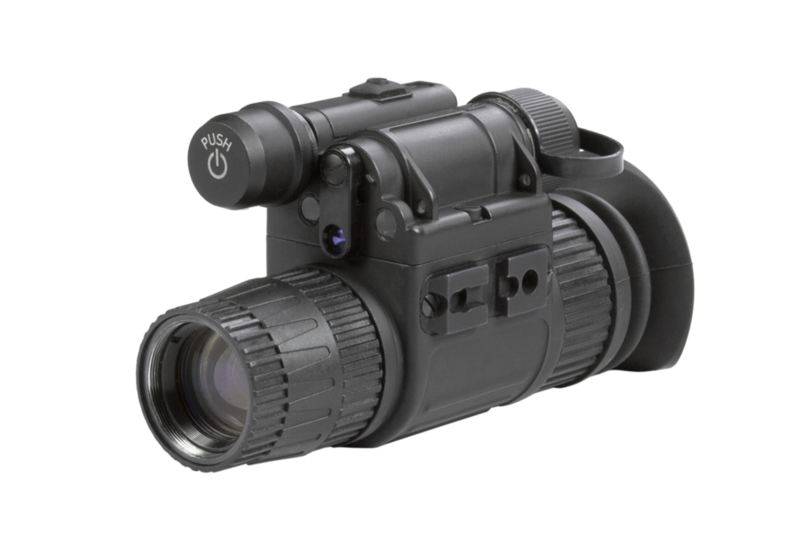

The NVM-40 is the standard by which all commercial versatile
monocular systems should be judged, now and in the future. The
NVM-40 employs best on the consumer market multi-coated
optics, built into a rugged, compact, and ergonomic composite
housing. We built this device to exceed user expectations, as
a result, the NVM-40 built around commercial grade image
intensifiers offers unmatched performance even in rain, salt
water, temperature extremes, and high-humidity environments
without costing a fortune. AGM NVM40 can be used in some of
the most challenging environments. Leading speleologists and
nature enthusiasts are having a blast with them in the toughest
jungle conditions in their search for rare species and the deepest
cave adventures. The AGM NVM40 can be used as a handheld
device, or mounted on the included head harness in other words
putting your tent or gathering the wood for the fire, night fishing
or simply admiring the stars is getting more comfortable than it
used to be.
The NVM-40 is available with a vast array of accessories,
including 3x and 5x magnification lenses for mid to long-range
viewing; head or helmet mounts to enable hands-free operation;
and, a detachable IR illuminator for long-range use.
|
| Image Intensifier Tube | Gen 2+ "Level 1" Photonis, FOM 1600 |
| Cosmetic level of IIT | NL1 the best quality |
| Resolution | 60-64 lp/mm |
| Visible Spots | Clear FOV |
| NL1 | manually selected tubes, featured advanced clear-cut image. Image’s quality approximates to Gen 3 level. |
| Magnification | 1x (3x and 5x optional) |
| Lens System | 27 mm; F/1.3 |
| FOV | 40° |
| Focus Range | 0.25 m to Infinity |
| Eye Relief | 17 mm |
| Diopter Adjustment | -6 to +2 diopters |
| LED Indicators (in the FOV) | - Low Battery - IR On - Excessive Light Conditions |
| Automatic Brightness Control | Yes |
| Bright Light Cut-Off | Yes |
| Automatic Shut-Off System | Yes |
| Infrared Illuminator | Yes; Two power levels |
| Battery Type | One CR123A (3V) or AA (1.5 V) |
| Battery Life (Operating) | Up to 40 hours at 20°C |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Storage Temperature Range | -50°C to +50°C (-58°F to +122°F) |
| Weight | 0.34 kg (0.75 lb) |
| Overall Dimensions | 175 × 57 × 80 mm (6.9 × 2.2 × 3.1 in) |
| Dimensions (without Eyecup and Lens Cap) | 122 × 49 × 73 mm (4.8 × 1.9 × 2.8 in) |
AGM Sioux940 Long-Range Infrared Illuminator comes included with Rechargeable Battery and Charger
PART NO.:
