AGM NVG-50 NW1 ECHO IIT White Phosphor NIGHT VISION GOGGLE/BINOCULAR

PART NO.: 14NV5122454011E

Email for quote

Other Models ARE Also Available:

Package Includes

Downloads

Description and Features

AGM NVG-50 NW1i ECHO IIT White Phosphor Gen 2+ "Photonis Autogated" Manual Gain control ECHO IIT White Phosphor

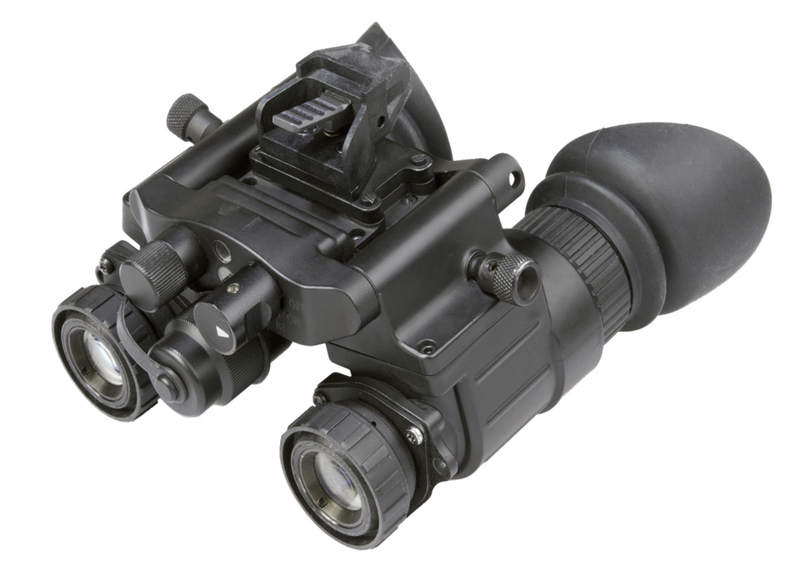

The AGM NVG-50 is a dual-channel night vision system. With a 51° field of view (FOV), it provides a large visual field without needing to move the binoculars. The AGM NVG-50 features best on the consumer market multi-coated optics and is built to last with a lightweight and robust housing. The device is built around Gen 2 commercial grade image intensifier tubes so the very attractive price/performance ratio is here. The bright light cut-off feature ensures that your high-quality electronics is protected. The NVG-40 is also equipped with Manual Gain Control, which adjusts the image brightness, so you can personalize your night vision experience during the most daring adventures. The AGM NVG-50 is also equipped with Manual Gain Control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. Operating from a single AA alkaline battery or CR123A battery, the NVG-50 can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.

AGM NVG-50 Overview. Read more at TheFirearmBlog

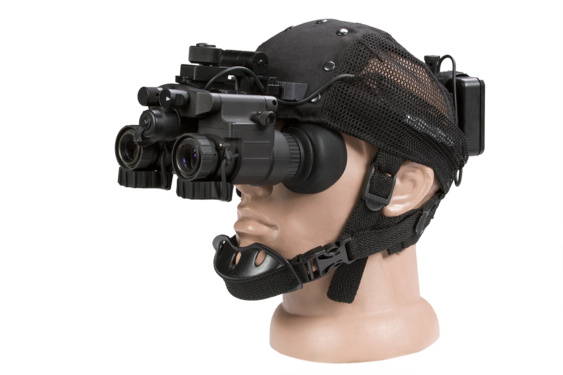

For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount

level 1 maximum spots allowed in each zone*
spot size (in)	zone 1	zone 2	zone 3
>.015 or larger	0	0	0
>.012 – .015	0	0	0
>.009 – .012	0	0	0
>.006 – .009	0	1	2
.003 – .006	1	2	3
note: not more than 4 spots allowed

LOWEST PRICE on Gen 2+ White Phosphor ECHO monocular on the market
Redundant dual-tube design
True stereoscopic vision
Wide 51° field of view
Lightweight & compact
Head mountable for hands-free operation
Bright light cut-off
Manual gain control
Ergonomic, simple, easy to operate controls
Built-in Infrared illuminator and flood lens
Utilizes single CR123A lithium or AA battery
3-Year warranty

SPECIFICATIONS

Image Intensifier Tube	Gen 2+ "Level 1" "Photonis Autogated" Manual Gain control ECHO IIT White Phosphor
Cosmetic level of IIT	NW1 the best quality
Resolution	57-74 lp/mm
FOM	1600-2000
SNR	23-28
Visible Spots	Clear FOV
NW1	manually selected tubes, featured advanced clear-cut image. Image’s quality approximates to Gen 3 level.
Magnification	1x (3x optional)
Lens System	19 mm; F/1.26
FOV	51°
Focus Range	0.25 m to infinity
Eye Relief	17 mm
Diopter Adjustment	-6 to +2 dpt
Interpupillary Distance	56 to 72 mm
Led Indicators	Low battery; IR on; Excessive light conditions
Manual Gain Control	Yes
Bright Light Cut-Off	Yes
Automatic Shut-Off System	Yes
Infrared Illuminator	Yes
Battery Type	One CR123A (3V) or AA (1.5 V)
Battery Life (Operating)	Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)
Operating Temperature Range	-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range	-50°C to +50°C (-58°F to +122°F)
Weight	615 g (1.35 lbs)
Overall Dimensions	112 × 118 × 74 mm (4.4 × 4.6 × 2.9 in)

optional equipment

Hard Case

PART NO.: 6610HCS1

Protective case, made of solid, robust material and designed special for safe storage and transportation.

Email for quote

AGM Goggle Kit W G50

PART NO.: 6104GK51

AGM Cap Goggle Kit allows mounting of night vision device onto cap construction for hands-free use.

€ 402.00

AGM Sioux940 Long-Range Infrared Illuminator comes included with Rechargeable Battery and Charger

PART NO.: 501SIOUX940IR1

AGM Extra Long Range Infrared Illuminators provide greater, image-intensified viewing capabilities for operations in little to no ambient light. Infrared illuminators are used in areas where the level of natural light is not sufficient. An IR illuminator provides near-infrared light, which, although invisible to the naked eye, can greatly enhance the performance of Night Vision devices. The illuminator features adjustments for field-of-view divergence and output power. AGM long range IR illuminators significantly extend the capabilities of Night Vision weapon sights and observation devices.

€ 185.00

AGM A-focal G50 Magnifier Lens Kit, 3X

PART NO.: 6102AFK1

Quickly converts NVG into a night vision binoculars. Ideal for long range observation.

Email for quote

AGM Sioux850 Long Range Infrared Illuminator with Mount, Dovetail to Weaver Transfer Piece, Rechargeable Battery, and Charger

PART NO.: 501SIOUX850IR1

€ 175.00
