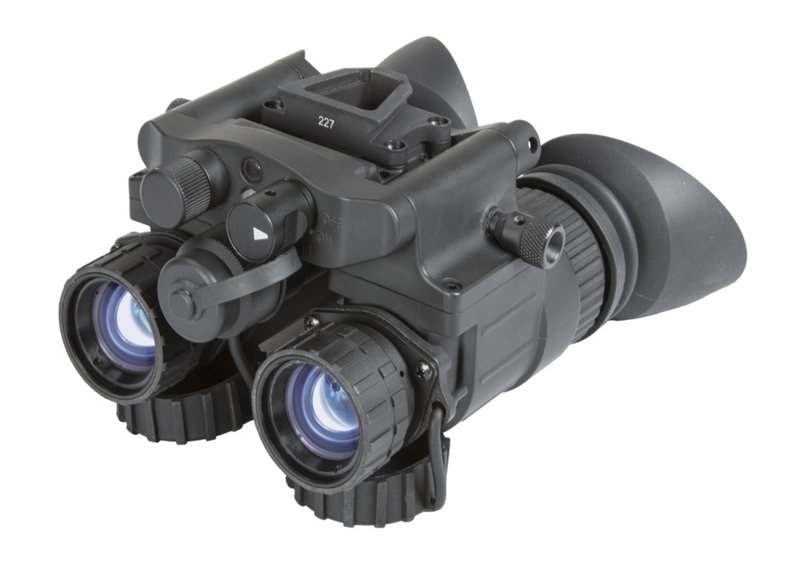

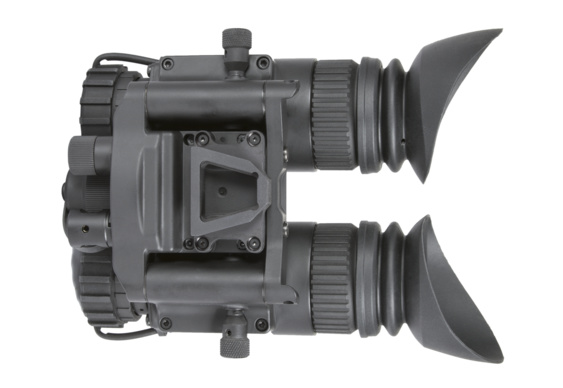

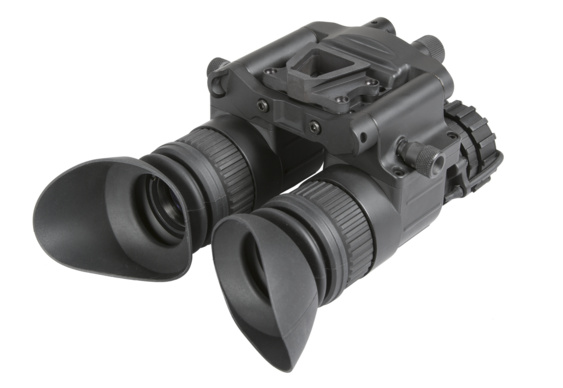

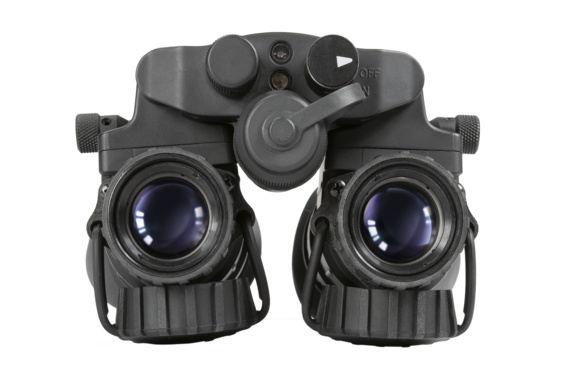

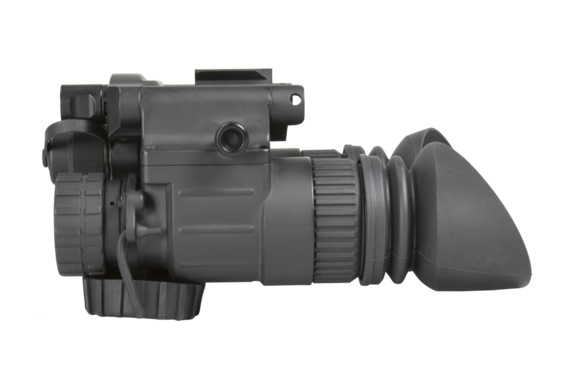

AGM NVG-40 AP NIGHT VISION GOGGLES / BINOCULAR

PART NO.: 14NV4122453011A

€ 9,534.00

Other Models ARE Also Available:

Package Includes

Downloads

Description and Features

The AGM NVG-40 is a dual-channel night vision system. The AGM NVG-40 features best on the consumer market multi-coated optics and is built to last with a lightweight and robust housing. The device is built around Gen 2+ commercial grade image intensifier tubes so the very attractive price/performance ratio is here. The bright light cut-off feature ensures that your highquality electronics is protected. The NVG-40 is also equipped with Manual Gain Control, which adjusts the image brightness, so you can personalize your night vision experience during the most daring adventures. Operating from a single AA alkaline battery or CR123A battery, the AGM NVG-40 can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.

For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount

level 1 maximum spots allowed in each zone*
spot size (in)	zone 1	zone 2	zone 3
>.015 or larger	0	0	0
>.012 – .015	0	0	0
>.009 – .012	0	0	0
>.006 – .009	0	1	2
.003 – .006	1	2	3
note: not more than 4 spots allowed

Redundant dual-tube design
True stereoscopic vision
Lightweight & compact
Head mountable for hands-free operation
Bright light cut-off
Manual gain control
Ergonomic, simple, easy to operate controls
Built-in Infrared illuminator and flood lens
Utilizes single CR123A lithium or AA battery
3-Year warranty

SPECIFICATIONS

Image Intensifier Tube	Advance Perfermance Auto-Gated Gen 2+ Auto-Gated, P43-Green Phosphor IIT.
Cosmetic level of IIT	AP the best quality
Resolution	60-64 lp/mm
Visible Spots	Clear FOV
AP	manually selected tubes, featured advanced clear-cut image. Image’s quality approximates to Gen 3 level.
Magnification	1x
Lens System	27 mm, F/1.3
FOV	40°
Focus Range	0.25 m to Infinity
Diopter Adjustment	-6 to +2 dpt
Eye Relief	25 mm
Interpupillary Distance	56 to 72 mm
LED Indicators (in the FOV)	Low Battery IR On Excessive Light Conditions
Manual Gain Control	Yes
Bright Light Cut-Off	Yes
Automatic Shut-Off System	Yes
Infrared Illuminator	Yes
Battery Type	One CR123A (3V) or AA (1.5 V)
Battery Life (Operating)	Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)
Operating Temperature Range	-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range	-50°C to +70°C (-58°F to +158°F)
Weight	645 g (1.42 lbs)
Overall Dimensions	115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in)
