AGM Foxbat-5 NW1 Night Vision Bi-Ocular

PART NO.: 13FXB525104011

€ 3,520.00

Other Models ARE Also Available:

Package Includes

Downloads

Description and Features

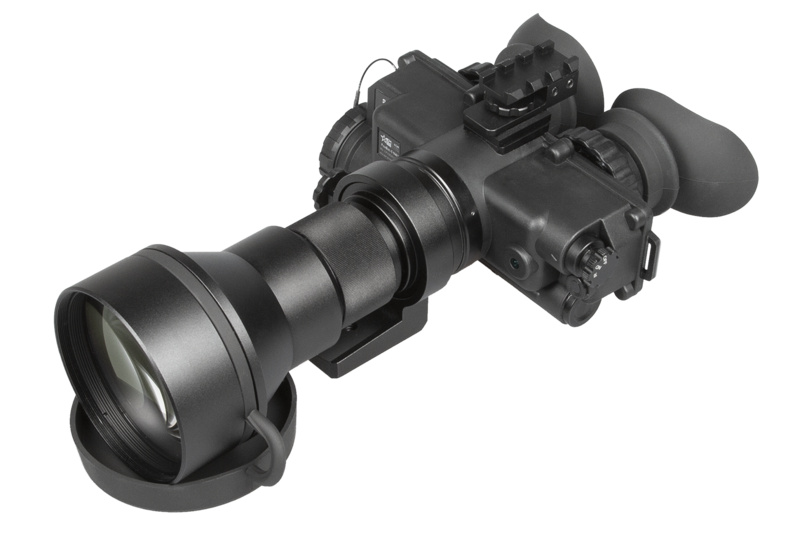

The AGM FoxBat-5 night vision bi-ocular is the perfect tool for mid-range and long-range observation. The FoxBat-5 combines a single high quality image intensifier tube with image beam splitter, double eyepiece and reliable electronics. AGM FoxBat-5 provides sufficient and durable solution for long time viewing sessions and mid to long range observation. This night vision bi-ocular is the ideal choice for home security, recreational use and even for scientific projects. Nature observers will enjoy the combination of crystal-clear image and professional fast multicoated optics. AGM FoxBat-5 has tripod mounting option so the longest night will not be an issue for birdwatchers and jaegers..

level 2i maximum spots allowed in each zone*
spot size (in)	zone 1	zone 2	zone 3
>.015 or larger	0	0	0
>.012 – .015	0	0	1
>.009 – .012	0	0	1
>.006 – .009	0	1	2
.003 – .006	1	2	3
note: not more than 4 spots allowed

5x magnification
Protection Level IP67
Super-fast, multi-coated, all-glass optics
Dual eye viewing system for long viewing sessions
Rugged and versatile design
Water and fog resistance
Ergonomic and easy to operate controls
Detachable long-range IR illuminator
Tripod mountable
3-year warranty

SPECIFICATIONS

Image Intensifier Tube	Gen 2+ "White Phosphor Level 1" International
Cosmetic level of IIT	NW1 the best quality
Resolution	47-55 lp/mm
Visible Spots	Clear FOV
NW1	manually selected tubes, featured advanced clear-cut image. Image’s quality approximates to Gen 3 level.
Magnification	5x
Lens System	140 mm; F/2.0
FOV	9.4°
Focus Range	10 m to infinity
Controls	Digital
Diopter Adjustment	-5 to +5 diopters
Led Indicators	Low battery; Excessive light conditions
Automatic Brightness Control	Yes
Bright Light Cut-Off	Yes
Infrared Illuminator	Detachable long-range IR illuminator
Battery Type	Two 1.5V AA batteries
Battery Life (Operating)	Up to 40 hrs
Operating Temperature Range	-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range	-50°C to +70°C (-58°F to +158°F)
Weight	1070 g (2.35 lb)
Overall Dimensions	280 × 150 × 78 mm (11.0 × 5.9 × 3.0 in)

optional equipment

AGM Sioux940 Long-Range Infrared Illuminator comes included with Rechargeable Battery and Charger

PART NO.: 501SIOUX940IR1

AGM Extra Long Range Infrared Illuminators provide greater, image-intensified viewing capabilities for operations in little to no ambient light. Infrared illuminators are used in areas where the level of natural light is not sufficient. An IR illuminator provides near-infrared light, which, although invisible to the naked eye, can greatly enhance the performance of Night Vision devices. The illuminator features adjustments for field-of-view divergence and output power. AGM long range IR illuminators significantly extend the capabilities of Night Vision weapon sights and observation devices.

€ 185.00

AGM Titanium Tripod with a Grip

PART NO.: 6606TTR1

Titanium Tripod with a Grip offers sturdy, professional support for your device. The quick-release plate on the head features a standard 1/4”-20 threaded screw for mounting compatible scopes, cameras, or other gear. PISTOL GRIP can take the ease of spotting or photographing on a tripod to a new level.

€ 293.00
