AGM COMANCHE 40 NW2i NIGHT VISION CLIP-ON SYSTEM

16CO4122304021i
product
thumbnail
thumbnail
thumbnail
thumbnail
DISCONTINUED
Other Models ARE Also Available:
  • AGM COMANCHE 40 NL1" name="other-models" class="pseudo_select__radio" id="other-pr-">
  • AGM COMANCHE 40 NL2" name="other-models" class="pseudo_select__radio" id="other-pr-">
Downloads export restrictions: Important Export Restrictions! Some products on this web site are meant for use or resale only within the EU zone and are subject to EU export control regulations. Licensing may be required for exporting outside the EU countries. Please contact us (info@agmglobalvision.eu) for additional information.

Description and Features

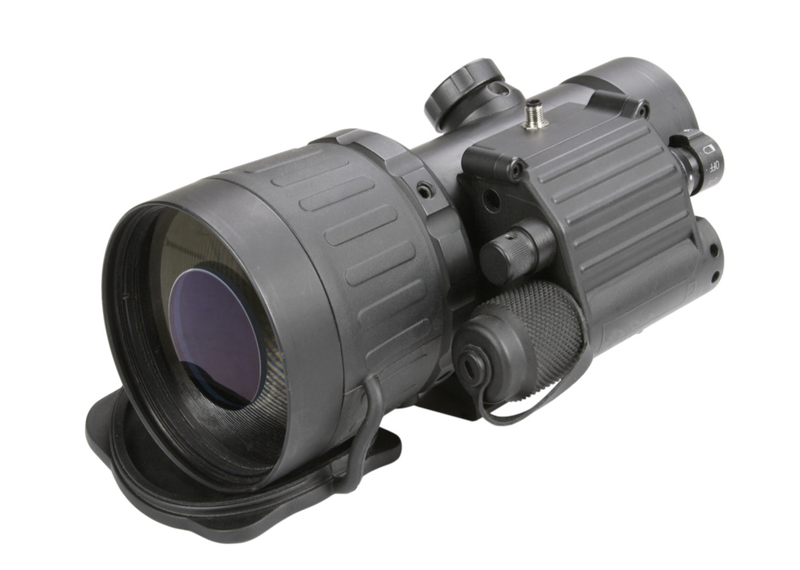

The Comanche 40 Night Vision Clip-On (NVCO) system uses the latest advances in night vision clip-on technology. Designed for mid-range nighttime shooting, the Comanche 40 delivers exceptional clarity, reliability, and versatility providing the most significant functionality and features at the lowest possible price.
The Comanche 40 is mounted to a standard Weaver or Picatinny rail in front of an existing day scope; transforming it into a Night Vision Device with no re-zeroing required. It provides unmatched target acquisition and enhanced aiming capabilities, making it extremely practical and effective during the most challenging missions. This NVCO can be used with day scopes of up to 12x magnification for optimal performance and is equipped with a quick release mount and wireless remote control.



level 2i
maximum spots allowed in each zone*
spot size (in) zone 1 zone 2 zone 3
>.015 or larger 0 0 0
>.012 – .015 0 0 1
>.009 – .012 0 0 1
>.006 – .009 0 1 2
.003 – .006 1 2 3
note: not more than 4 spots allowed
  • Simple, quick conversion of daytime scopes to NVDs
  • Manual gain control
  • Mounts in front of any daytime scope, no rezeroing required
  • Equipped with a wireless remote control
  • Powered by a single Alkaline 1.5 V AA or 3 V CR123A Lithium battery
  • Bright-light cut-off system
  • Quick-release mount
  • Limited 3-Year Warranty

SPECIFICATIONS

Image Intensifier Tube Gen 2+ "White Phosphor Level 2" International
Cosmetic level of IIT NW2i second-best quality
Resolution 45-57 lp/mm
Visible Spots very limited
NW2i features minimum cosmetics imperfections that allowed close to the edges and will not detract viewing.
Magnification 1x
Lens System 80 mm; F/1.44
FOV 12°
Focus Range 10 m to Infinity
Exit Pupil 40 mm
Controls Direct
Led Indicators Low battery; Excessive light conditions
Manual Gain Control Yes
Bright Light Cut-Off Yes
Automatic Shut-Off System Yes
Infrared Illuminator Detachable Long Range IR Illuminator
Battery Type One CR123A (3V) or AA (1.5 V)
Battery Life (Operating) Up to 60 hours (3 V) at 20°C; up to 30 hours (1. 5 V) at 20°C
Operating Temperature Range -40°C to +50°C (-40°F to +122°F)
Storage Temperature Range -50°C to +50°C (-58°F to +122°F)
Weight 1.04 kg (2.3 lbs)
Overall Dimensions 189 × 104 × 90 mm (7.4 × 4.1 × 3.5 in)
Package Includes Night Vision Clip-On, Remote Control, Sioux850, Lens Cloth, Light Suppressor for Day Scope, Light- Suppressor, Hood, Quick Release Mount, Mount for IR Illuminator, Soft Carrying Case

optional equipment
